Grooved Pipes - Engineered for Modern Piping Systems

Modern piping systems require efficient, flexible, and reliable joining methods. Grooved pipe systems from Wingrou have emerged as a preferred solution in commercial, industrial, and mechanical applications.

The use of Wingrou grooved steel pipes and fittings has transformed the way piping systems are installed and maintained. This advanced joining method offers significant advantages in speed, flexibility, and efficiency, making it an ideal choice for diverse industries such as fire protection, HVAC, and industrial process piping.

Wingrou grooved piping systems integrate a complete range of components, including grooved fittings, valves, couplings, and grooving machinery—engineered to work seamlessly together. The addition of flow switches and system accessories further enhances performance, safety, and operational reliability.

Key Takeaways

• Efficient and reliable joining method for modern piping systems
• Wingrou grooved pipe systems deliver speed, flexibility, and durability
• Complete system solutions including grooved fittings, valves, and machinery
• Enhanced system control with integrated flow switches
• Ideal for commercial, industrial, and mechanical applications

The Evolution of Grooved Pipes in Modern Construction

The development of grooved pipes has played a vital role in advancing modern construction practices. Wingrou grooved piping solutions reflect this evolution by combining proven engineering with contemporary manufacturing standards.

What Are Grooved Pipes?

Grooved pipes feature a precision-engineered groove at the pipe end, allowing secure connection using a grooved coupling. Wingrou grooved couplings engage firmly around pipe ends, creating a leak-tight and pressure-rated joint. Each coupling consists of a housing, gasket, and bolts to ensure long-term reliability.

Historical Development

Grooved pipe technology originated in the early 20th century, initially gaining popularity in fire protection systems. Over time, manufacturers like Wingrou expanded its use into HVAC, mechanical piping, and industrial applications by improving materials, coatings, and manufacturing accuracy.

Cut Grooving vs. Roll Grooving

Wingrou supports both grooving techniques based on project needs:

• Cut Grooving: Precision cutting of the groove, suitable for thicker pipes and high-pressure applications

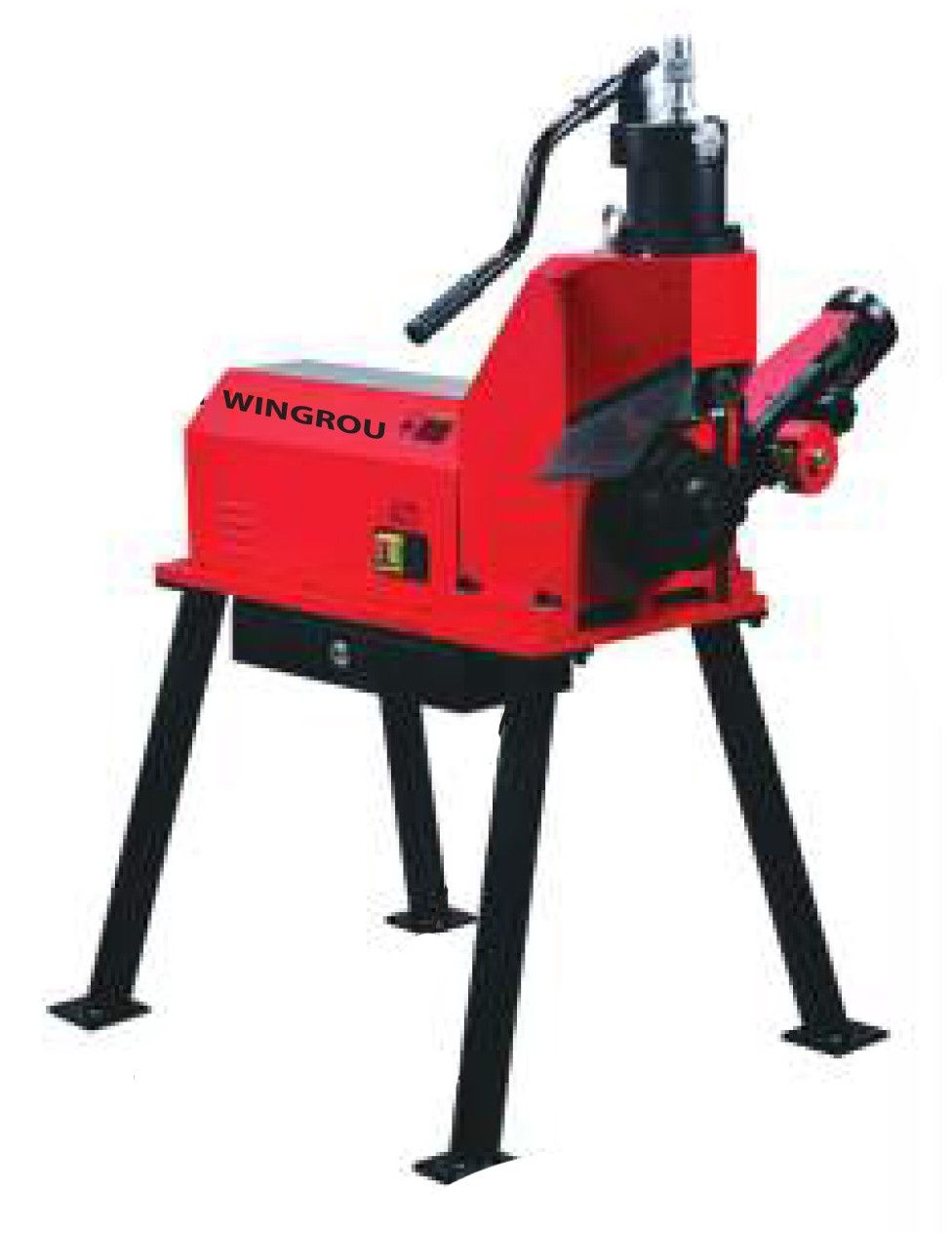

• Roll Grooving: Cold-forming the groove for faster processing and improved pipe strength

Choosing the right grooving method depends on pipe material, system pressure, and installation requirements.

Key Benefits of Wingrou Grooved Piping Systems

Fast Installation & Cost Efficiency

Wingrou grooved fittings enable quick installation without welding, threading, or flanging. This significantly reduces labor time, installation cost, and project downtime.

No-Weld Safety Advantages

By eliminating hot work, Wingrou grooved systems improve job-site safety, reducing fire risks and ensuring consistent, leak-proof connections.

Flexibility & Vibration Resistance

Wingrou grooved piping systems are engineered to absorb vibration and movement, making them ideal for seismic zones, pump rooms, and mechanical systems.

Easy Maintenance & Long Service Life

The modular nature of Wingrou grooved pipe connections allows easy disassembly for maintenance or system expansion—enhancing system longevity and operational efficiency.

Essential Wingrou Grooved Coupling Solutions

Grooved couplings are the backbone of any grooved piping system. Wingrou offers a complete range of grooved coupling solutions designed to meet varying performance and pressure requirements.

Rigid Coupling Systems

Wingrou rigid couplings provide a strong, fixed connection where minimal pipe movement is required. These are ideal for:

• Fire protection risers
• Pump room installations
• High-pressure mechanical piping systems

Rigid couplings ensure precise alignment and structural stability throughout the piping network.

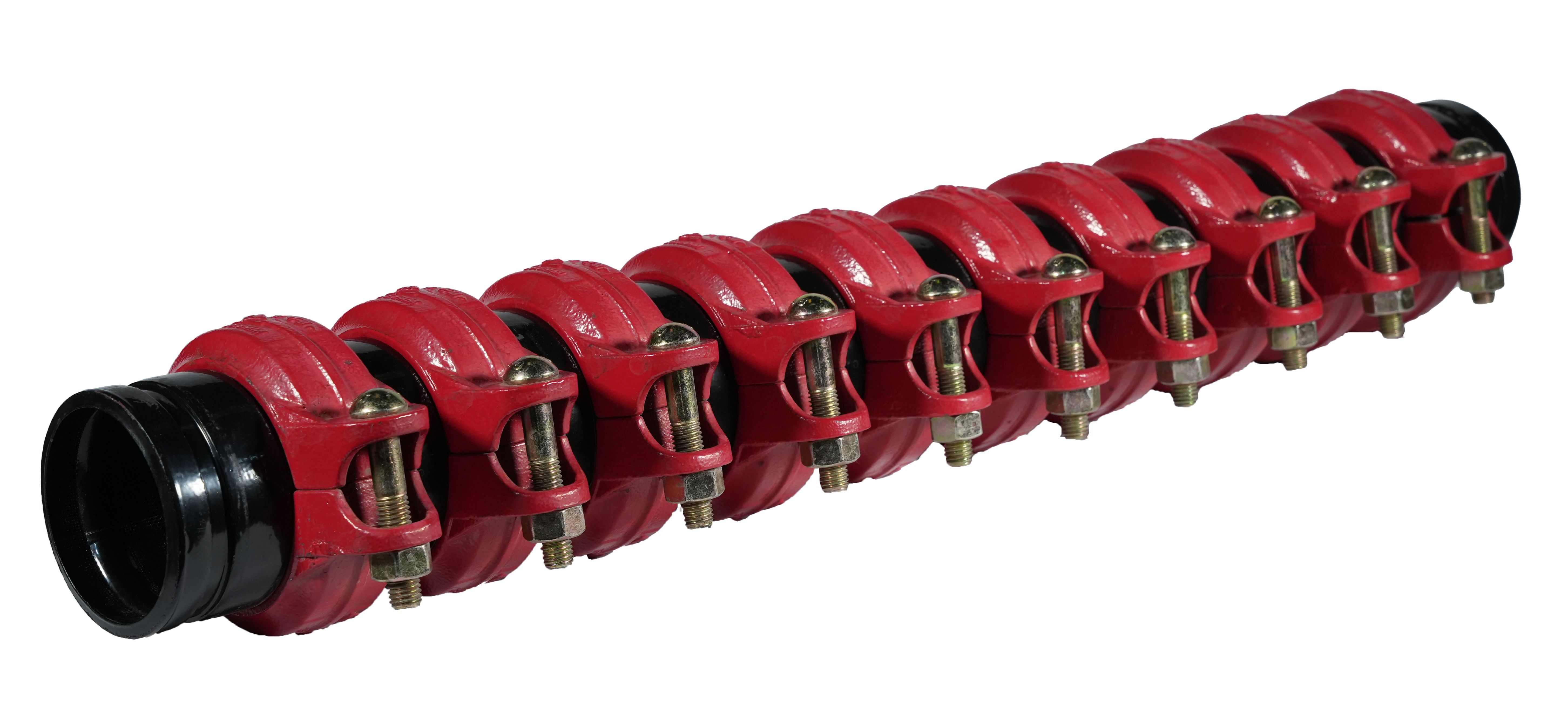

Flexible Coupling Options

Flexible couplings, on the other hand, allow for some degree of movement between the connected pipes. This flexibility is crucial in systems that are subject to vibration, thermal expansion, or contraction.

Reducing Flexible Couplings

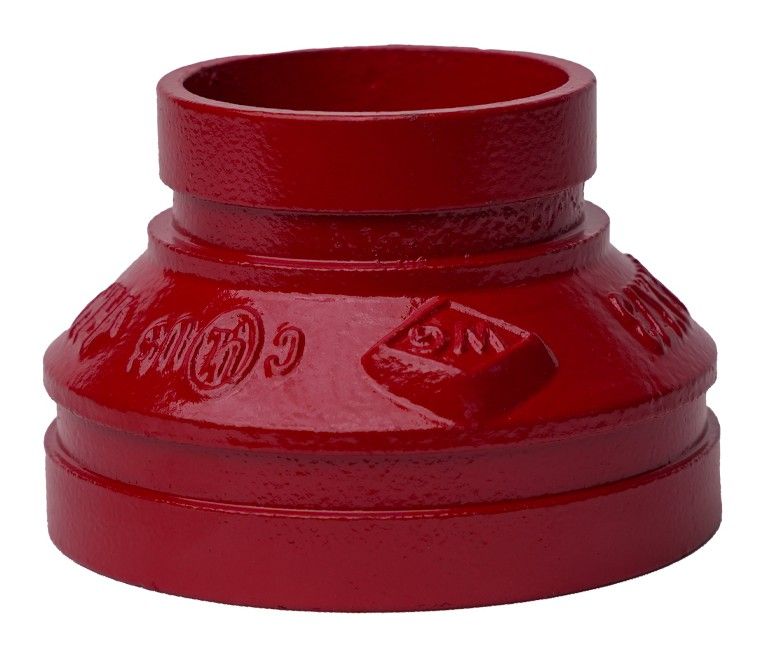

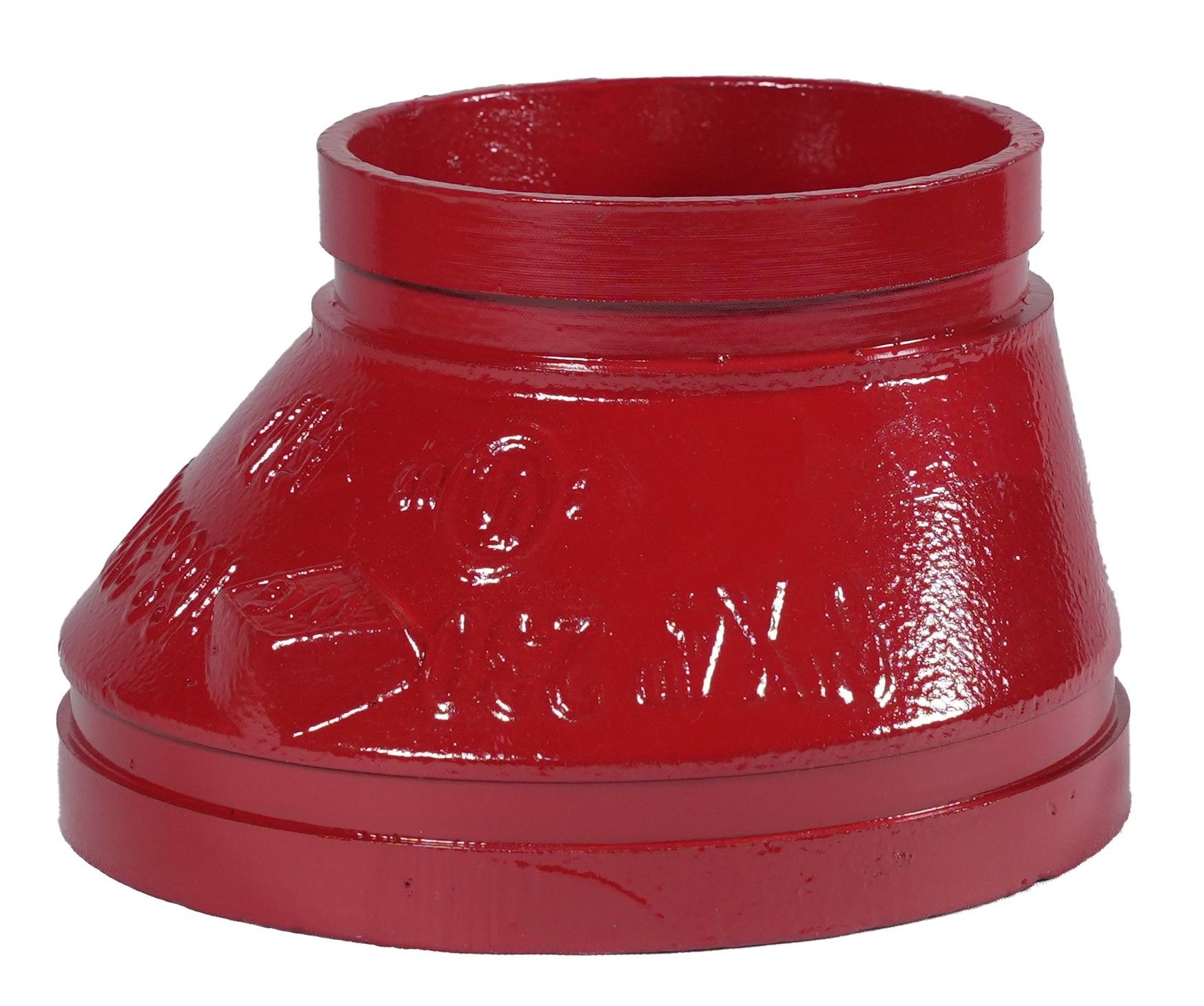

Reducing flexible couplings are used to connect pipes of different diameters while still providing the benefits of flexibility. They are particularly useful in systems where pipe size changes are necessary.

Specialized Coupling Applications

Specialized couplings are designed for unique applications, such as high-temperature or corrosive environments. These couplings are engineered to meet specific requirements, ensuring the integrity of the piping system.

Coupling Type	Application	Key Benefit
Rigid Coupling	High-Pressure Systems	Strong, unyielding connection
Flexible Coupling	Systems subject to vibration or thermal changes	Allows for movement and flexibility
Reducing Flexible Coupling	Connecting pipes of different diameters	Flexibility with size adaptability

In conclusion, the choice of grooved coupling solution depends on the specific requirements of the piping system. By understanding the different types of couplings available, engineers can design systems that are both efficient and reliable.

Comprehensive Range of Grooved Fittings

The versatility of grooved piping systems is largely attributed to the wide array of fittings available for various applications. Grooved fittings are designed to provide flexibility, reliability, and efficiency in piping installations across different industries.

Mechanical Tees and U-BOLT Designs

Mechanical tees are a crucial component in grooved piping systems, allowing for branch connections that are both strong and leak-resistant. U-BOLT designs accompany these tees, ensuring a secure connection that can withstand various pressures and stresses. The combination of mechanical tees and U-BOLTs facilitates complex piping configurations while maintaining system integrity.

Grooved Elbow Varieties

Grooved elbows are available in several configurations to accommodate different piping needs. These include:

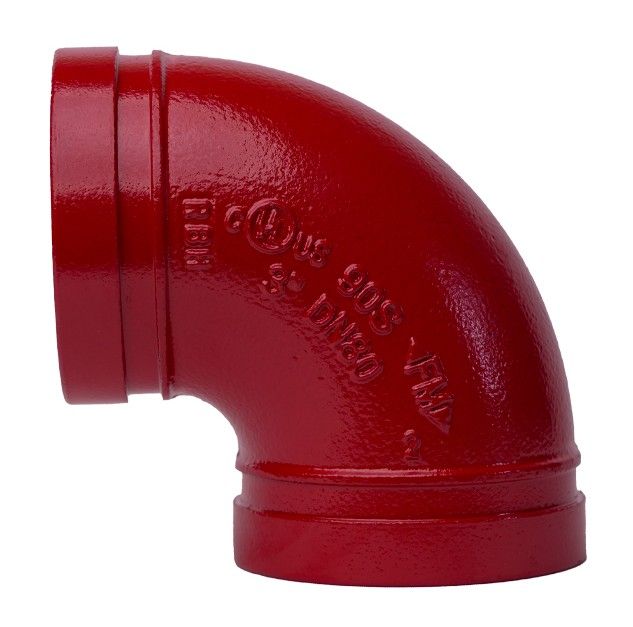

• 90-Degree Elbows: Used for sharp turns in piping systems, these elbows are designed for smooth flow transitions.

90-Degree Elbows

• 90-degree elbows are essential for making sharp turns in piping layouts, ensuring minimal disruption to fluid flow.

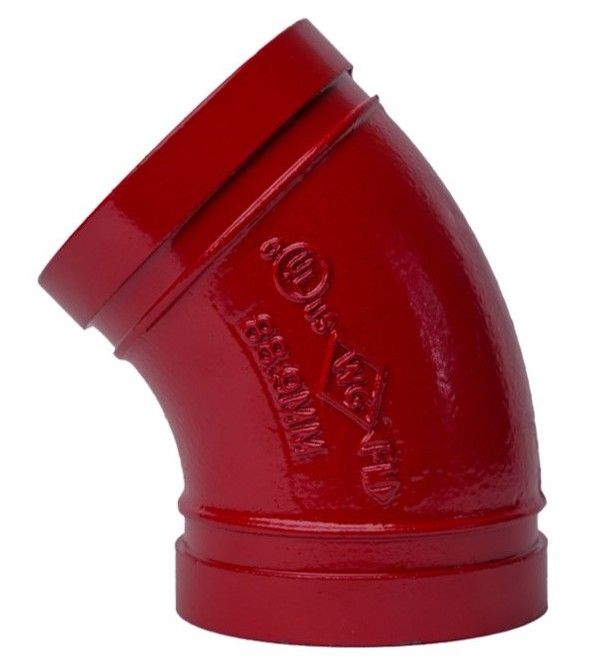

• 45-Degree Elbows: These elbows provide a more gradual turn, reducing pressure drops and turbulence in the system.

45-Degree Elbows

• 45-degree elbows are used when a less severe turn is required, helping to maintain flow rates and reduce wear on the piping system.

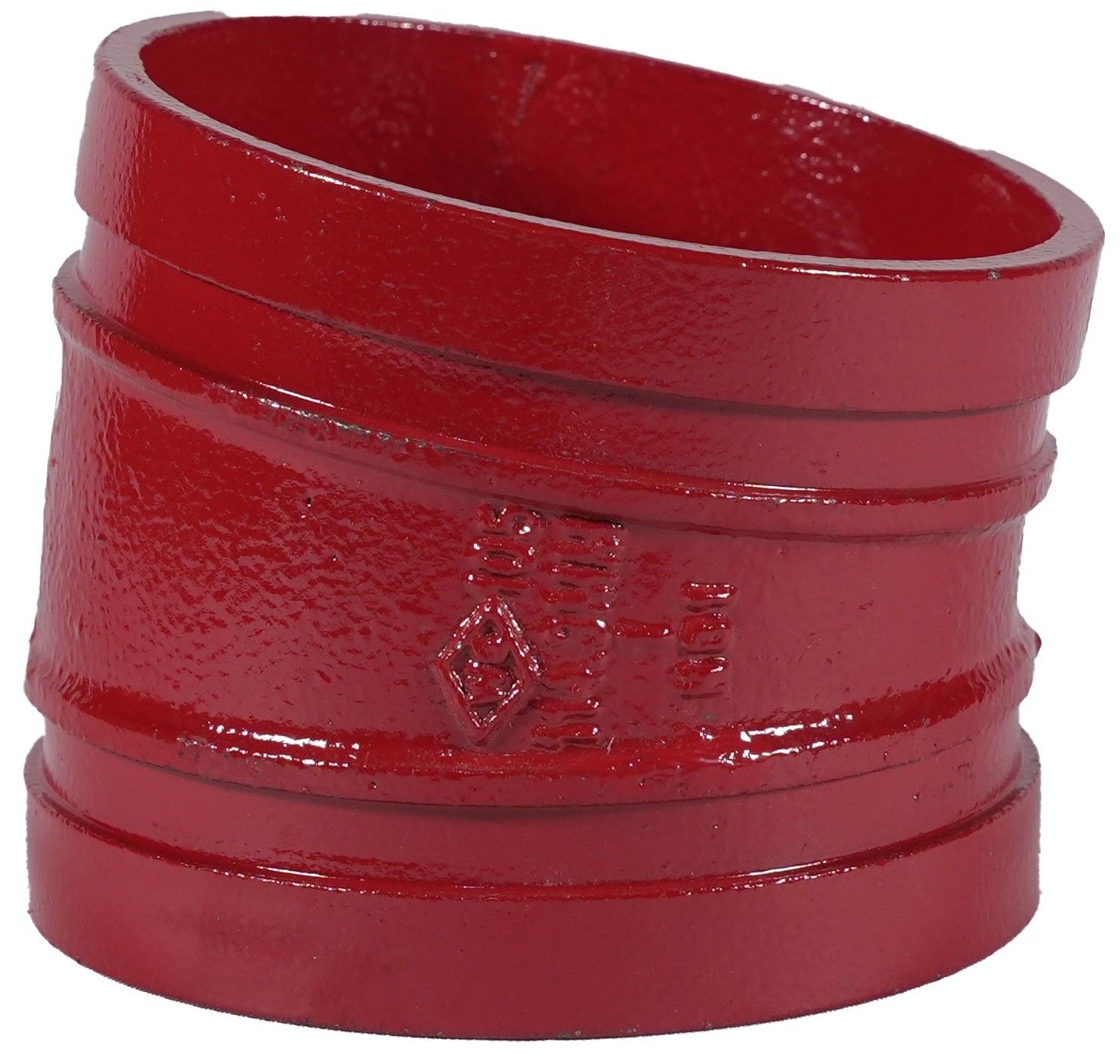

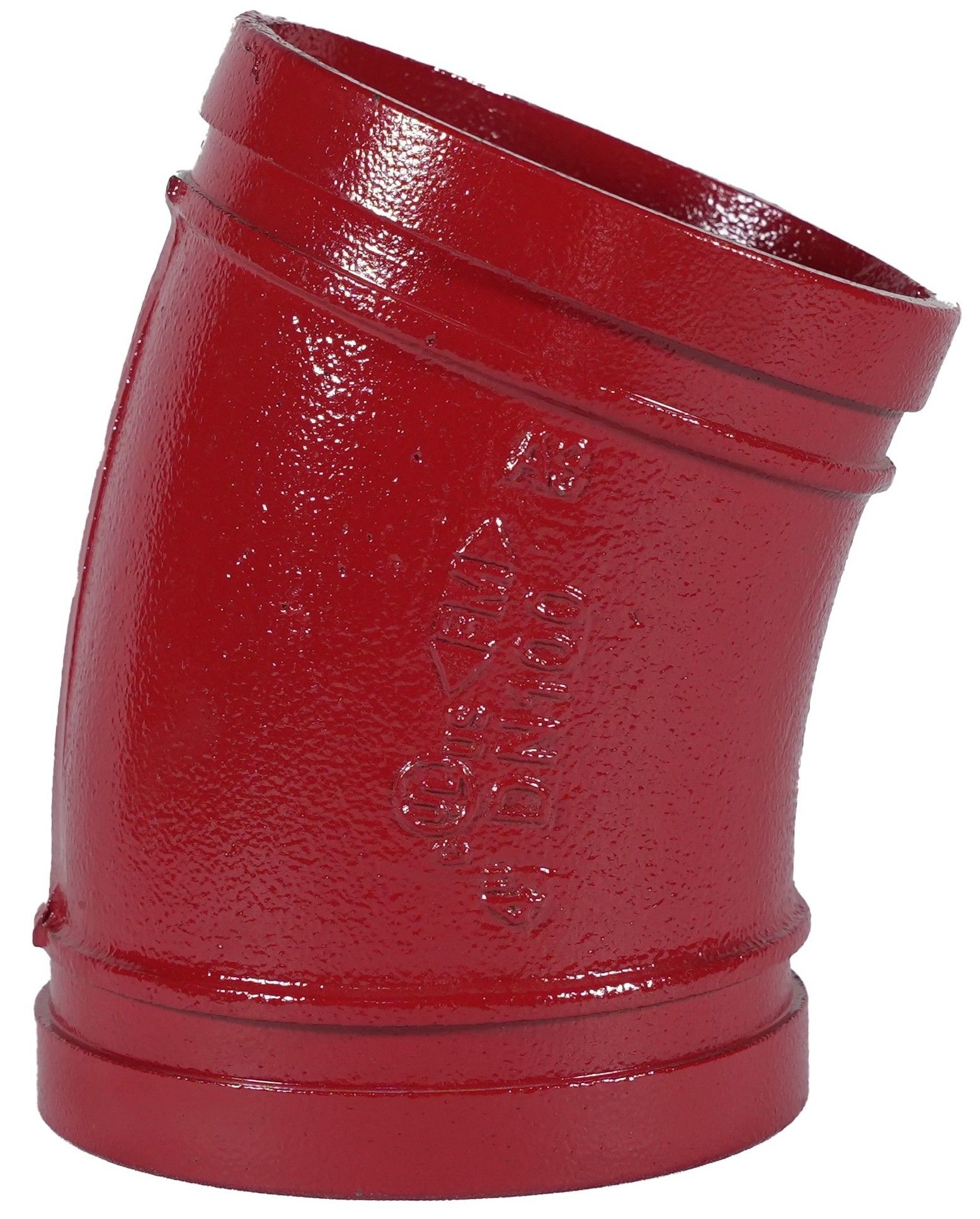

• 22.5 and 11.25-Degree Elbows: For even more subtle changes in direction, these elbows offer flexibility in designing piping routes.
• These elbows are utilized for fine-tuning piping alignments, allowing for precise adjustments in complex installations.

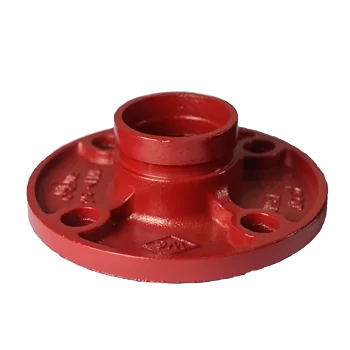

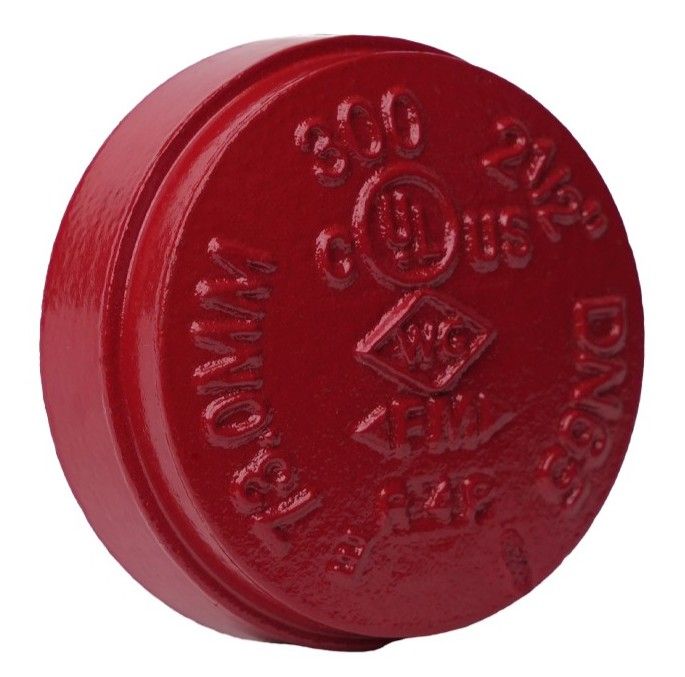

Flange Adapters and End Caps

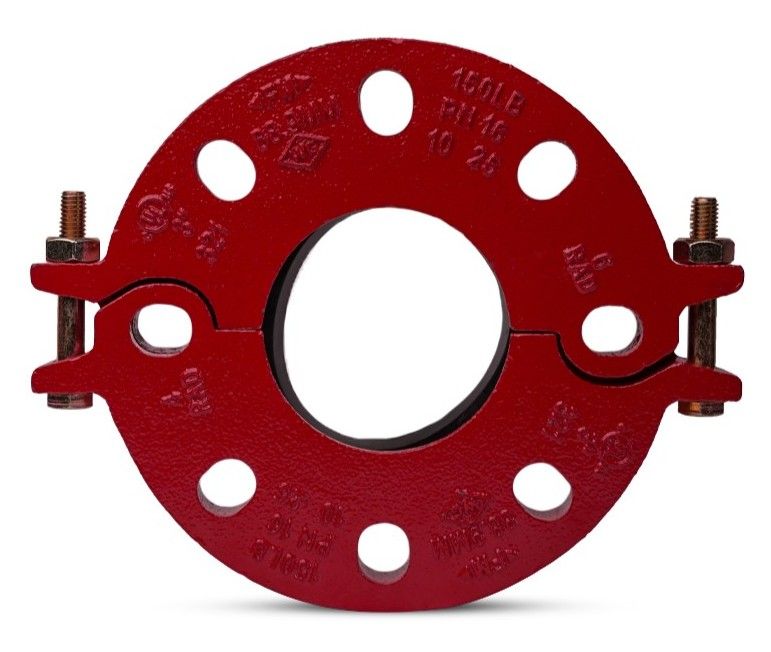

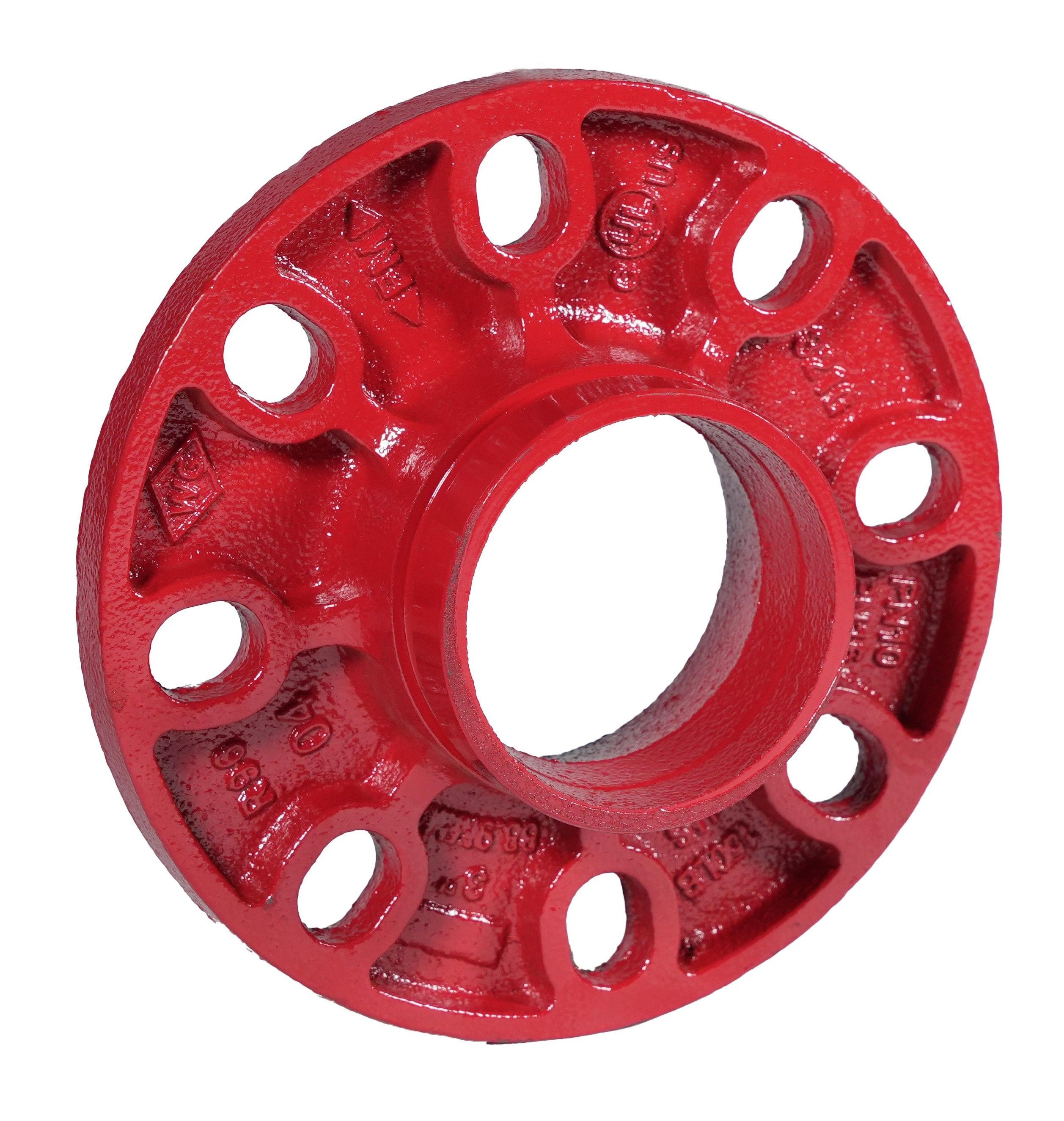

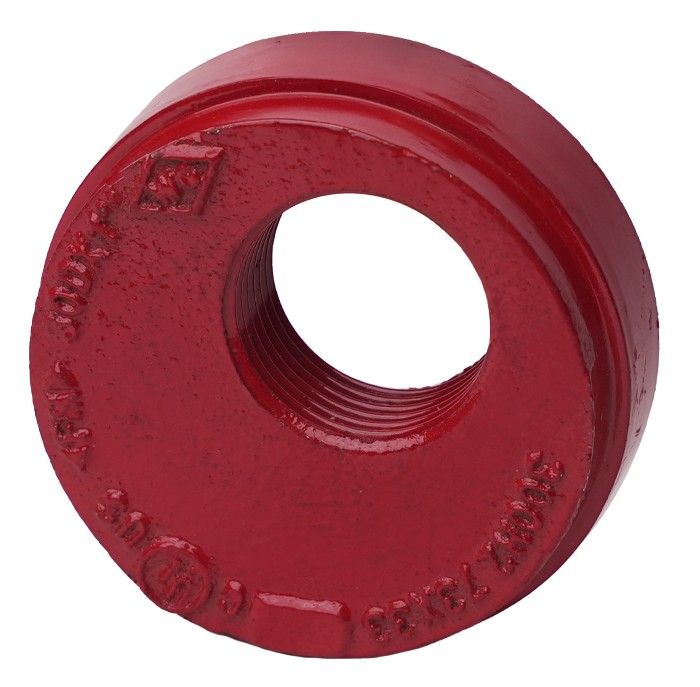

Flange adapters are critical for connecting grooved pipes to flanged systems, providing a secure and leak-tight seal. End caps, on the other hand, are used to terminate piping runs, ensuring that the system remains closed and pressurized when necessary.

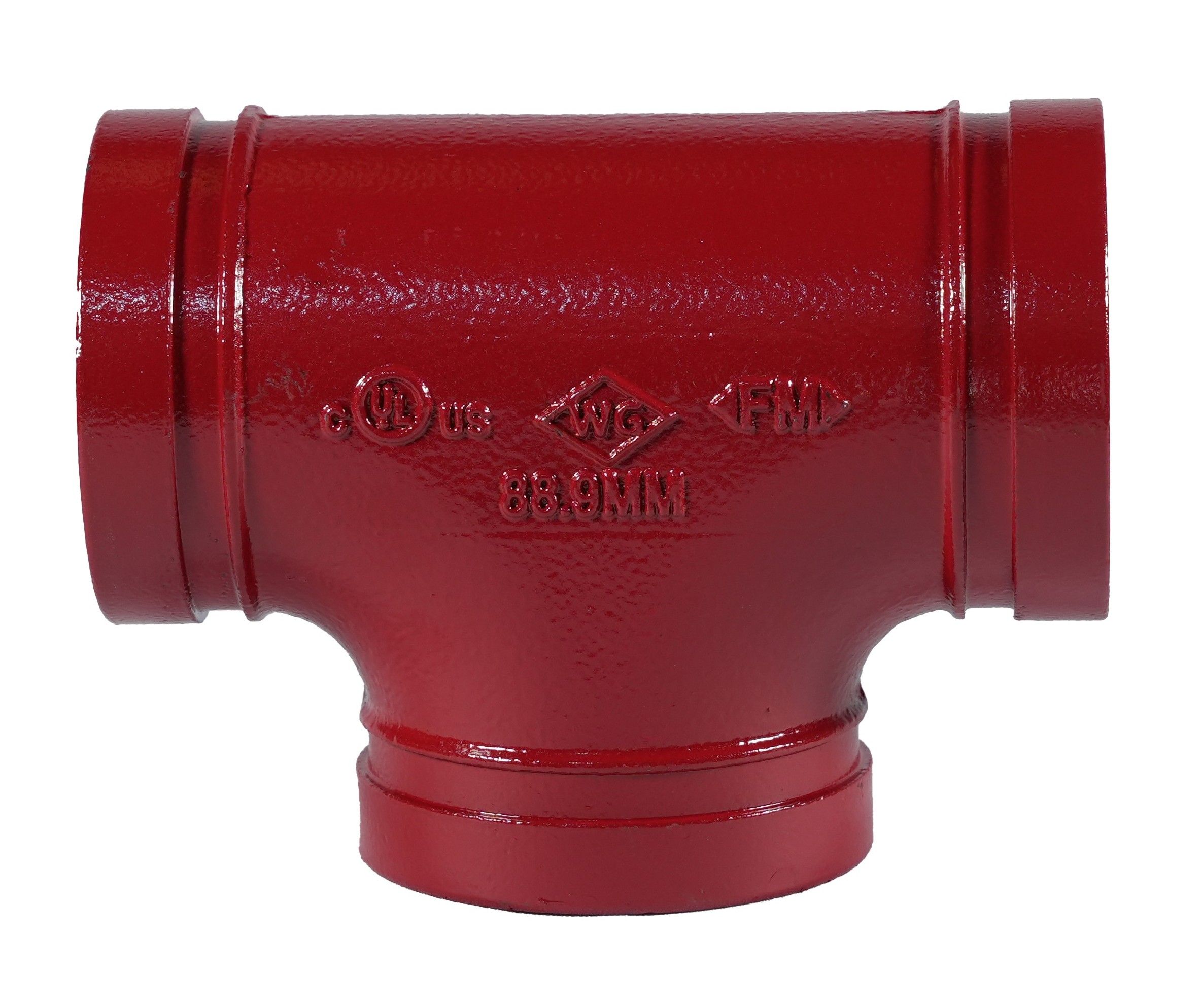

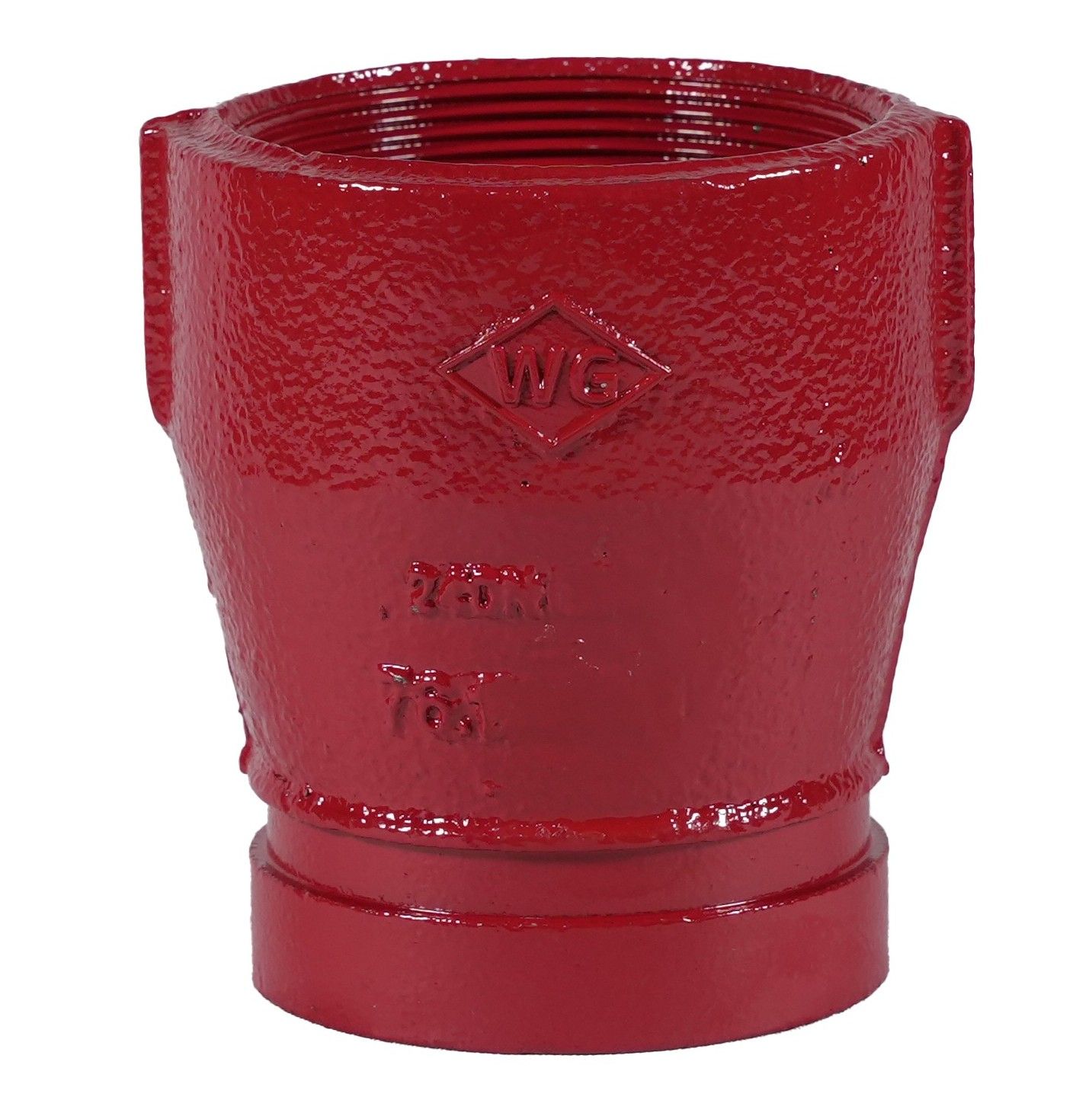

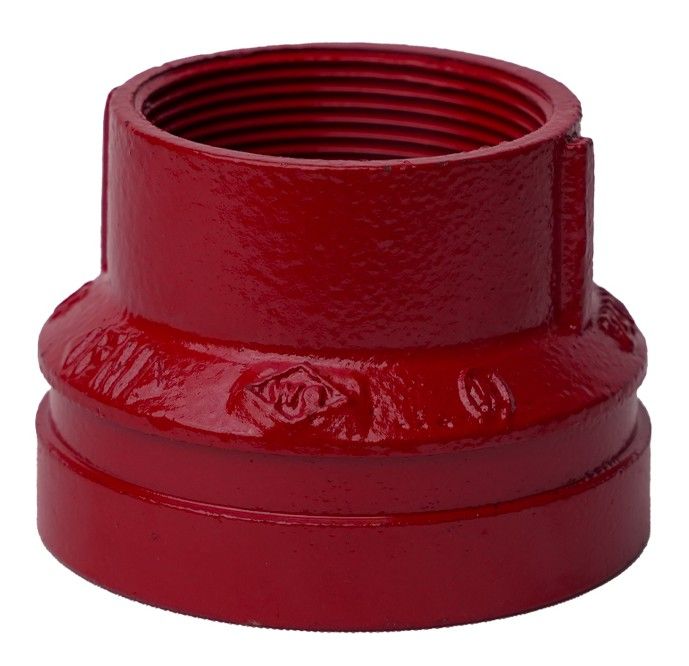

Tees, Crosses, and Reducers

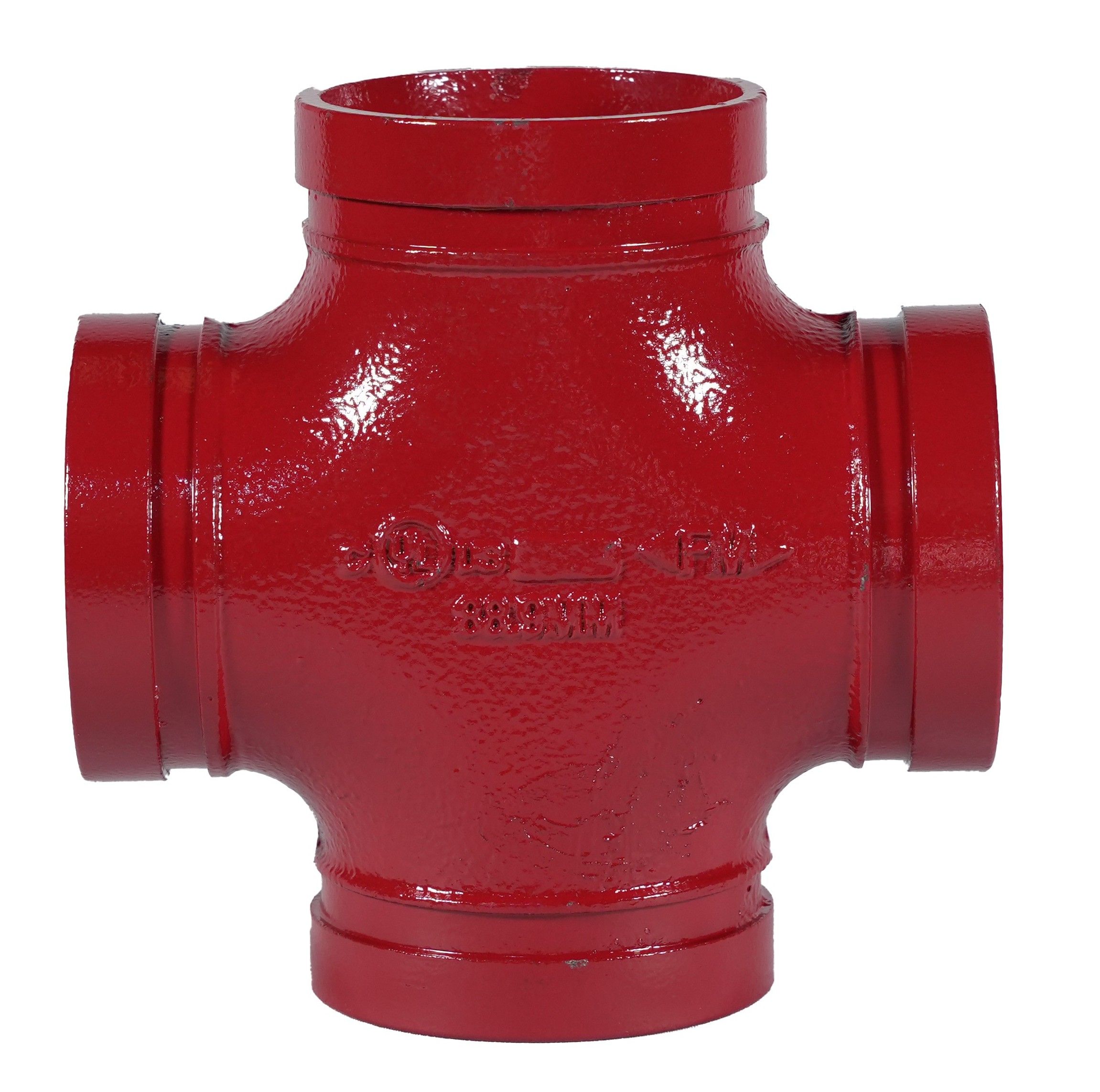

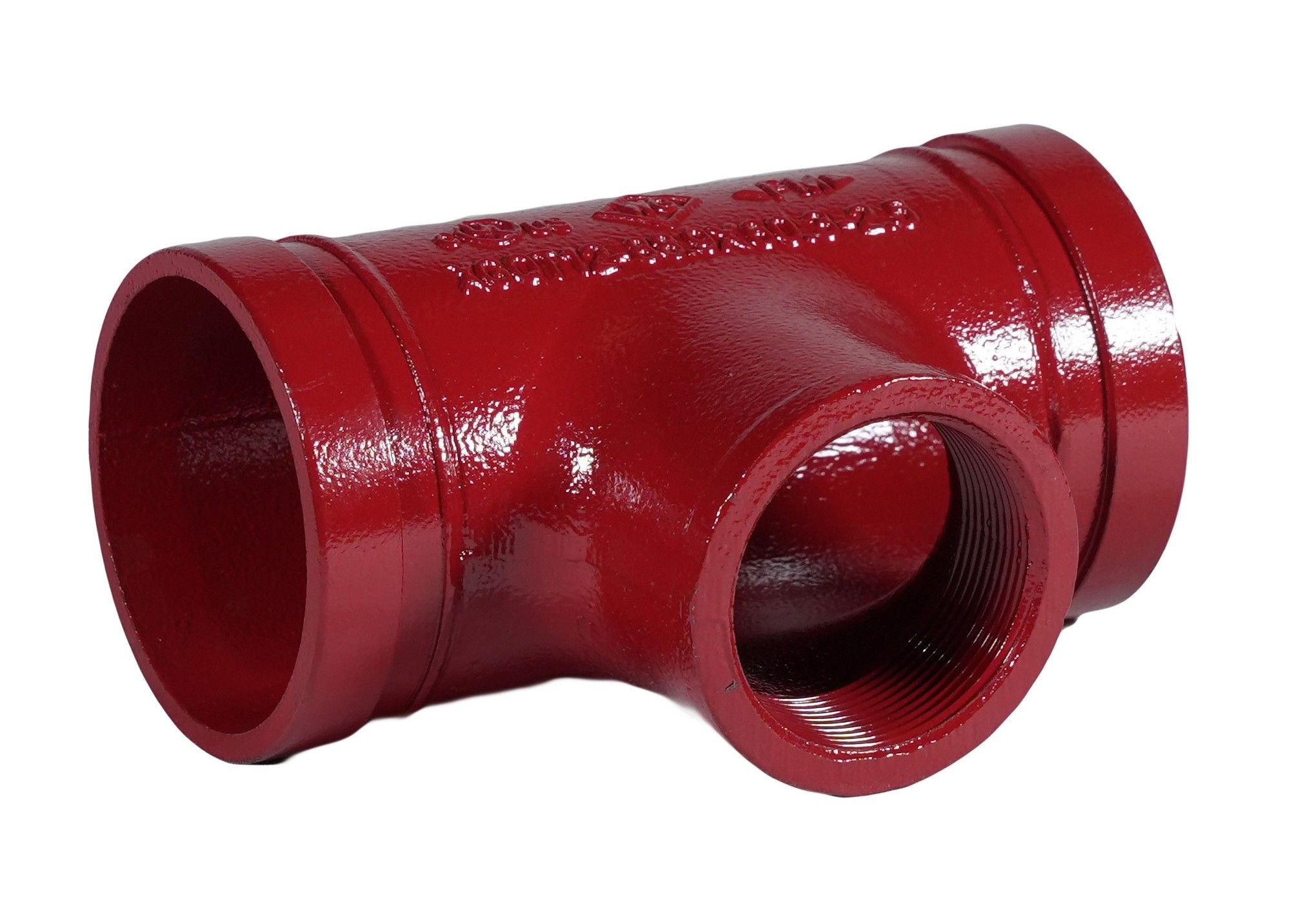

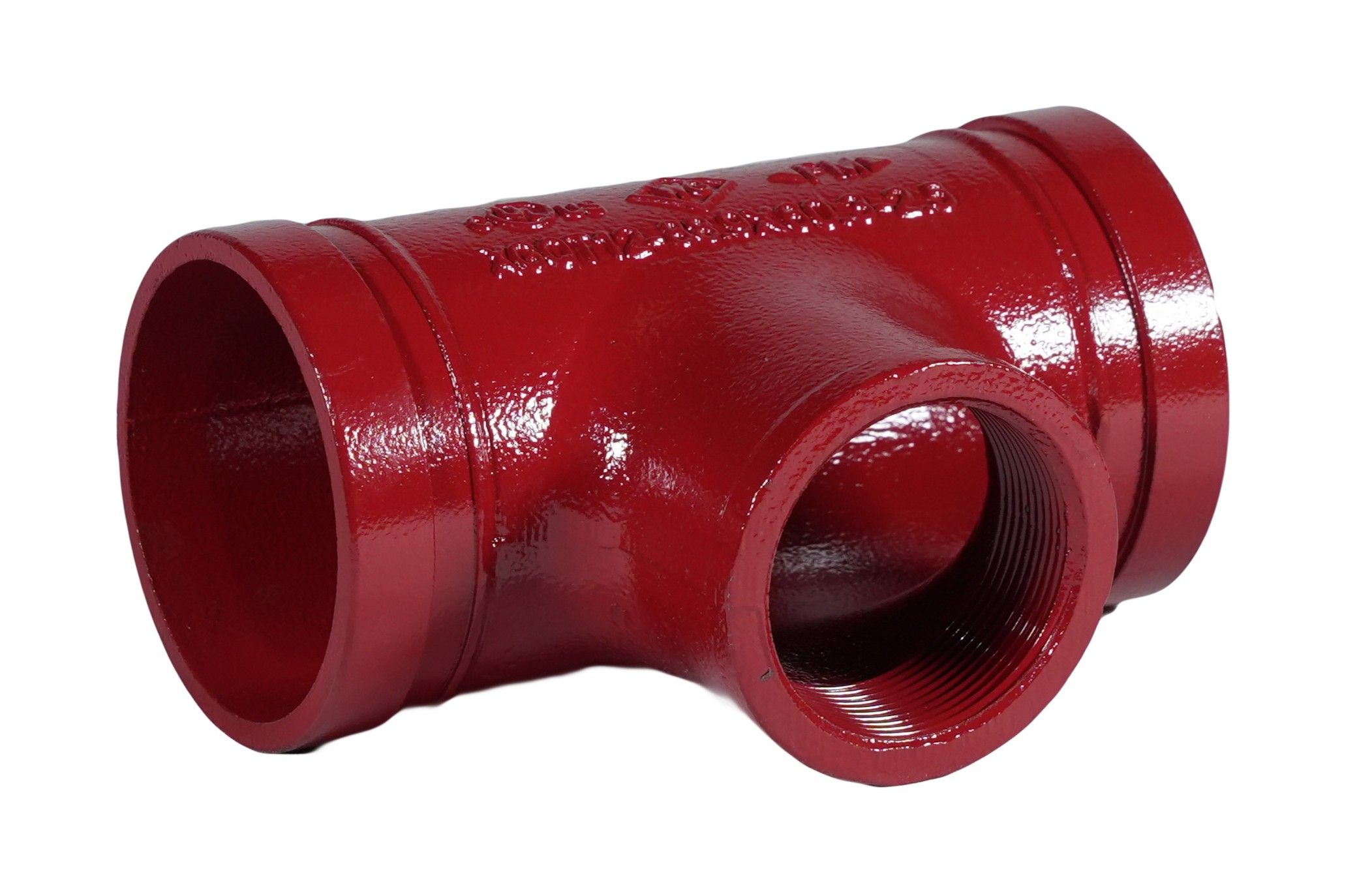

Tees and crosses are used to create branch connections in piping systems, while reducers allow for changes in pipe diameter. These fittings are essential for designing complex piping networks that meet specific application requirements.

In conclusion, the comprehensive range of grooved fittings available today enables the design and installation of highly efficient and reliable piping systems. By incorporating mechanical tees, grooved elbows, flange adapters, and other specialized fittings, engineers can create complex piping configurations that meet the demands of various industries.

Advanced Valve Technology for Grooved Pipe Systems

Advanced valve technology plays a crucial role in the functionality and performance of grooved pipe systems. The integration of sophisticated valves is essential for controlling the flow of fluids, managing pressure, and ensuring the overall reliability of piping networks.

Grooved Gate Valves

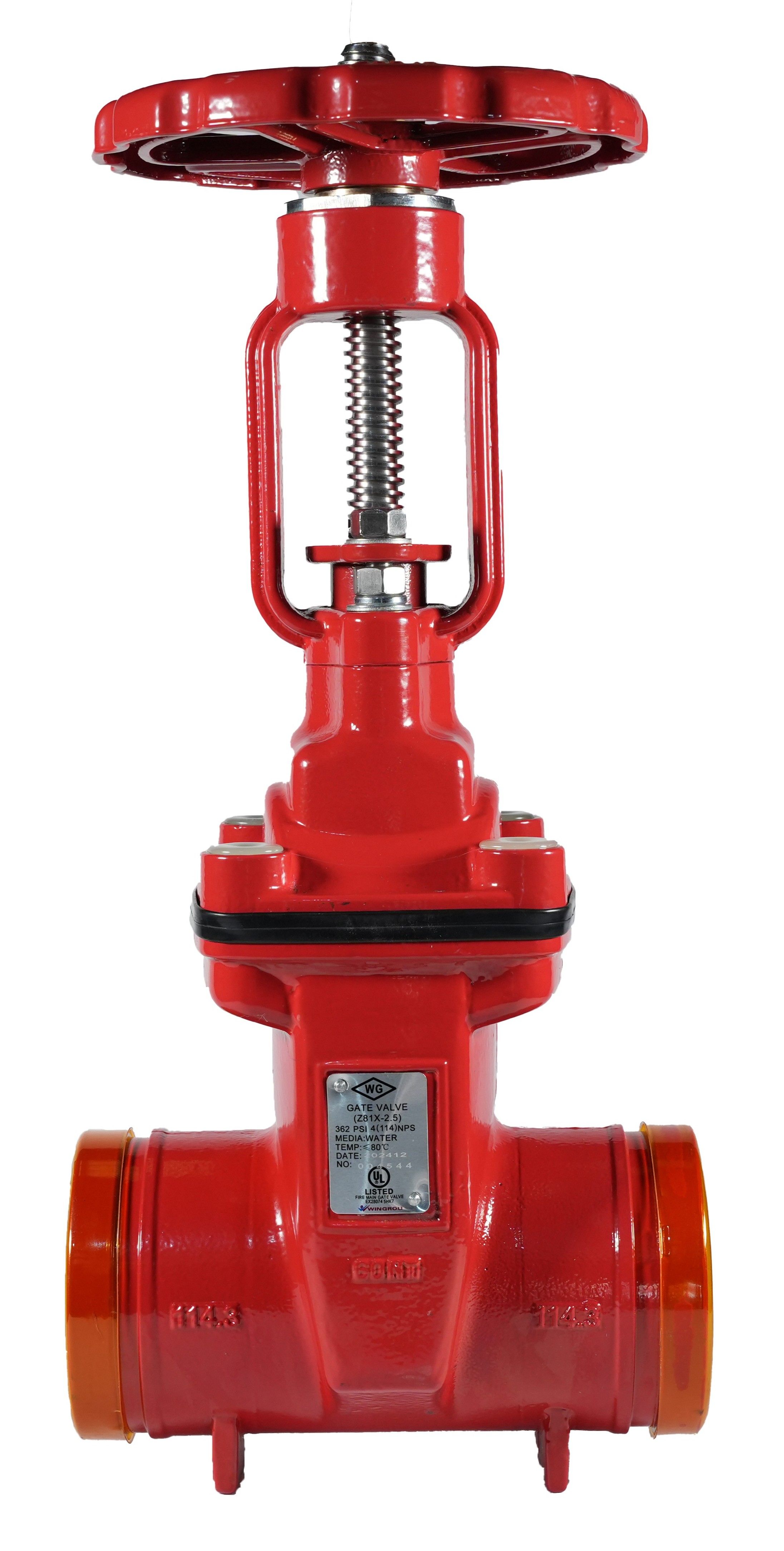

Grooved gate valves are designed for applications where a full-flow, low-pressure drop valve is required. They are commonly used in fire protection and HVAC systems due to their robust construction and reliable operation. The grooved design allows for easy installation and flexibility in system configuration.

Butterfly Valves with Tamper Switch

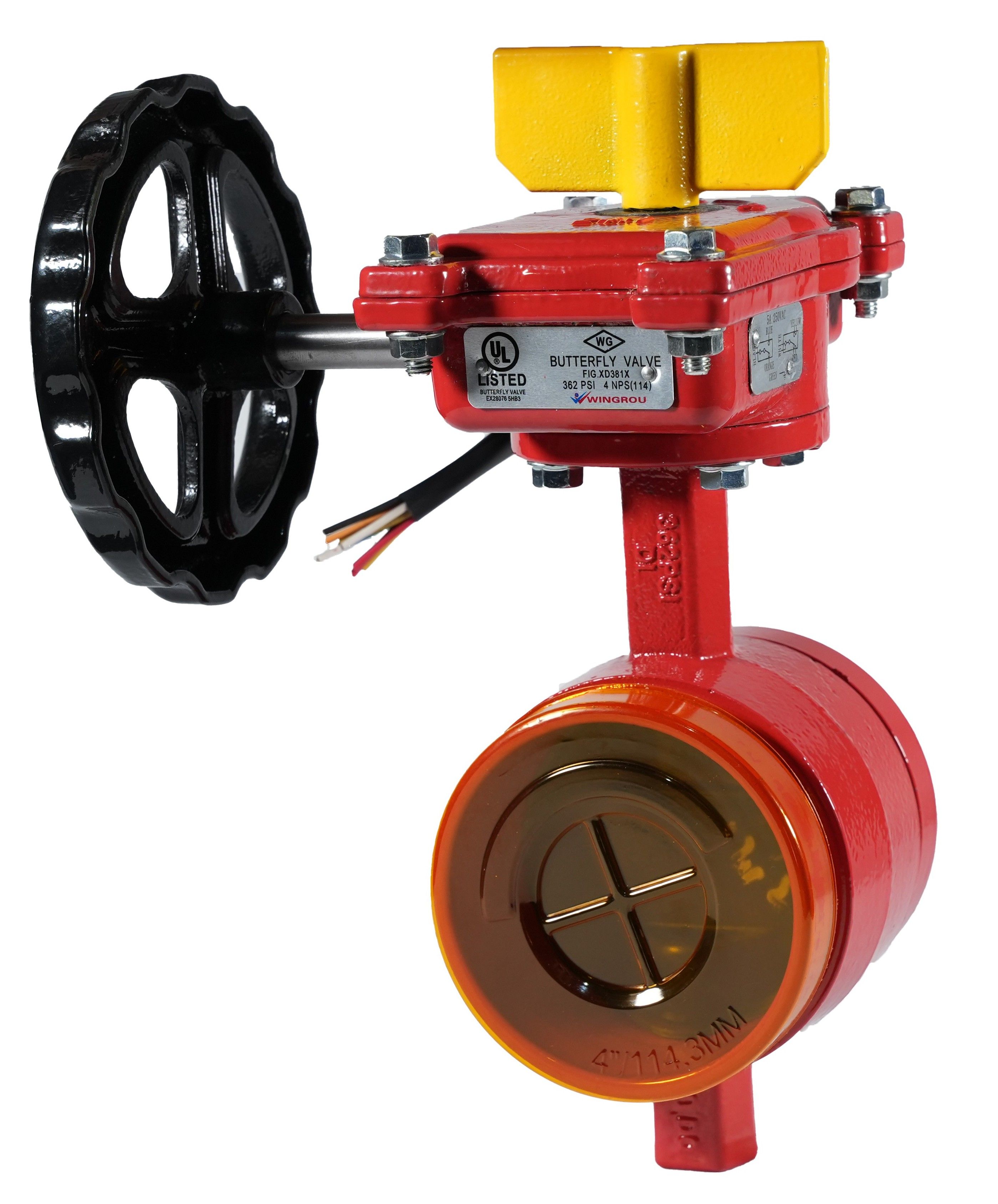

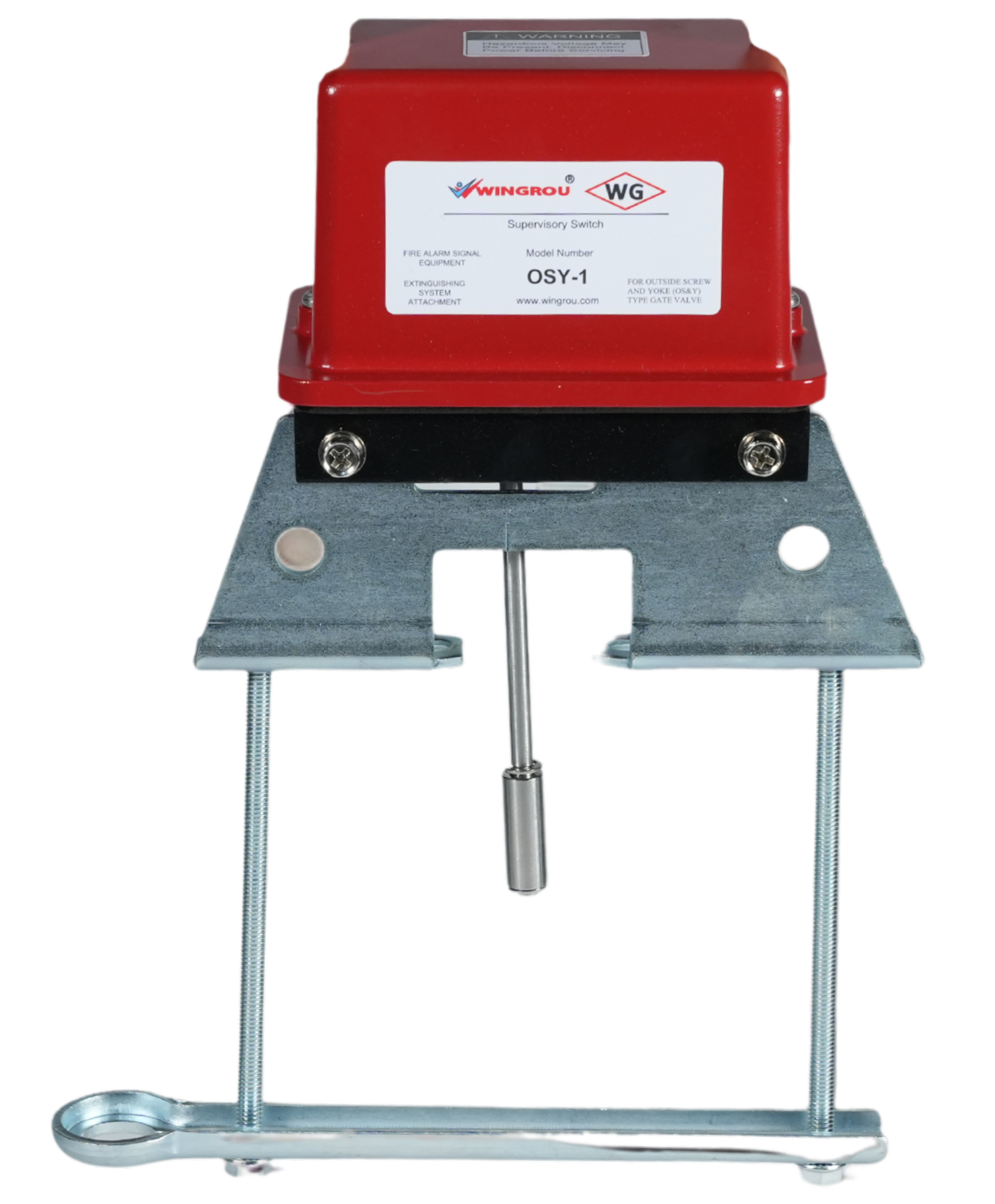

Butterfly valves with tamper switches offer a versatile solution for flow control in grooved pipe systems. The tamper switch feature provides an additional layer of security by monitoring the valve's position and alerting operators to any unauthorized changes.

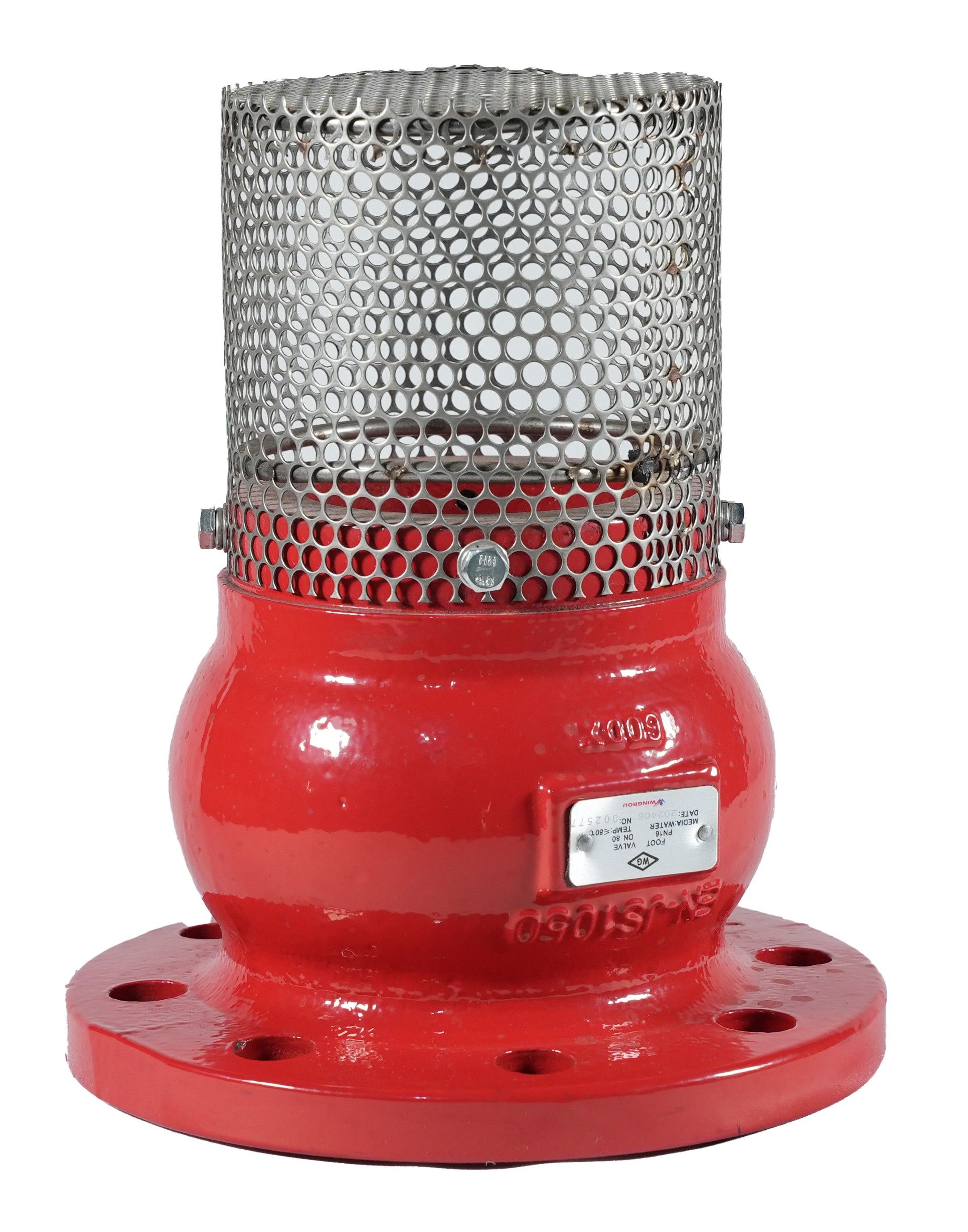

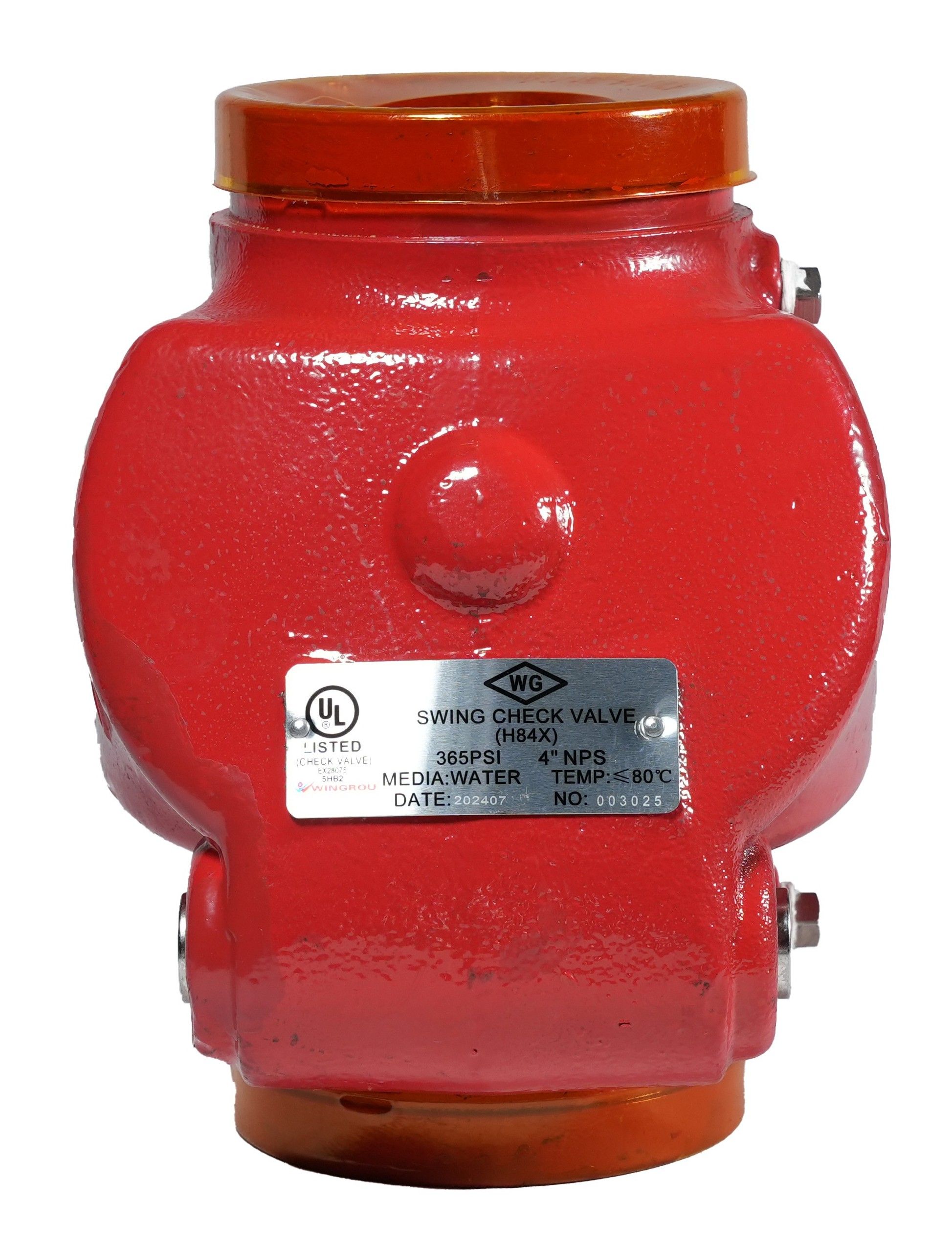

Check Valves and Foot Valves

Check valves and foot valves are critical components in preventing backflow and ensuring the directional flow of fluids. These valves are designed to operate automatically, responding to changes in pressure and flow rates.

Specialized Valve Solutions

Specialized valve solutions, including deluge valves and pressure reducing valves, are used in specific applications where unique operational requirements must be met.

Deluge Valve 4778

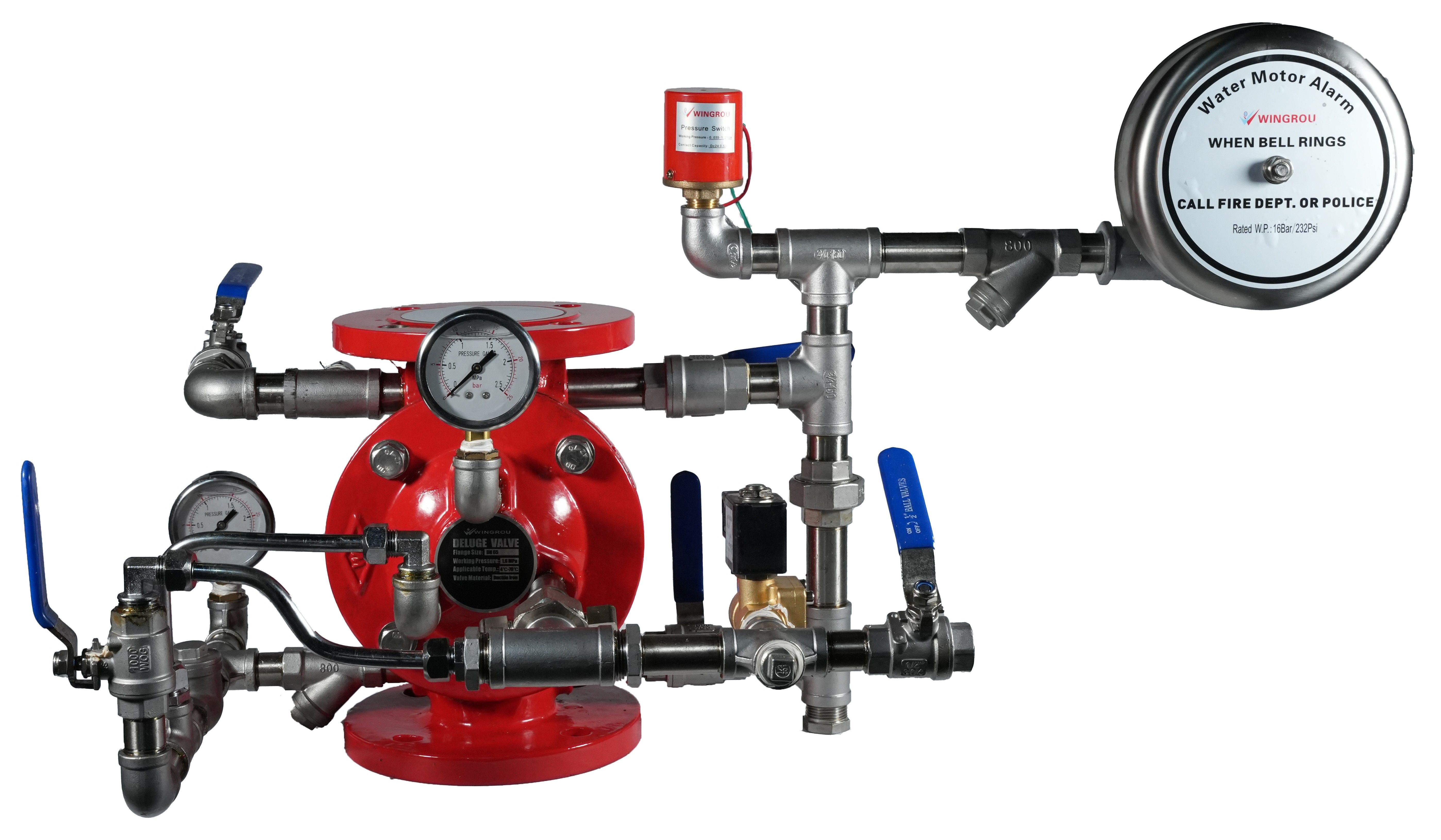

The Deluge Valve 4778 is a highly specialized valve designed for fire protection systems. It is engineered to provide rapid response to fire conditions, releasing large quantities of water or other extinguishing agents.

Pressure Reducing and Relief Valves

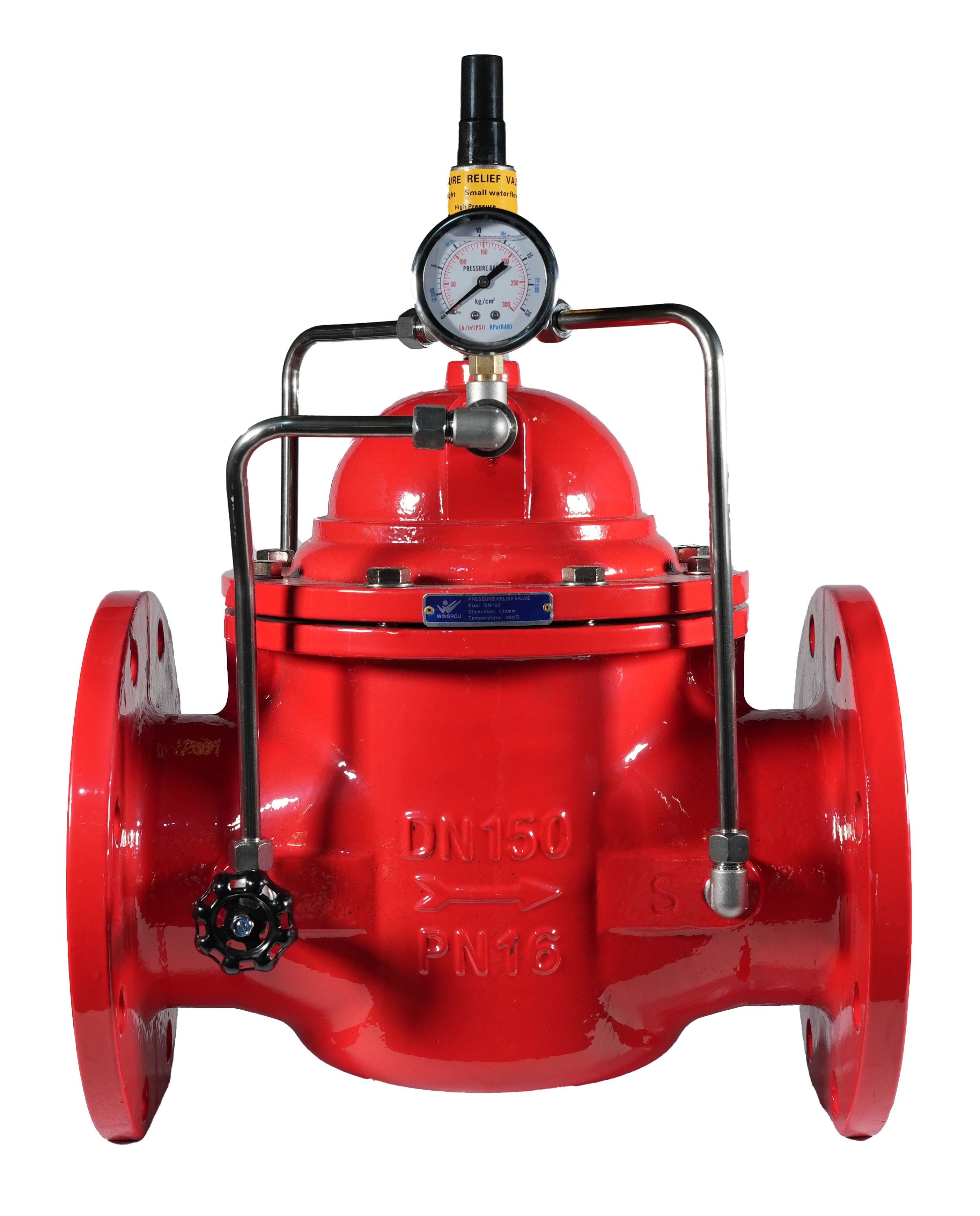

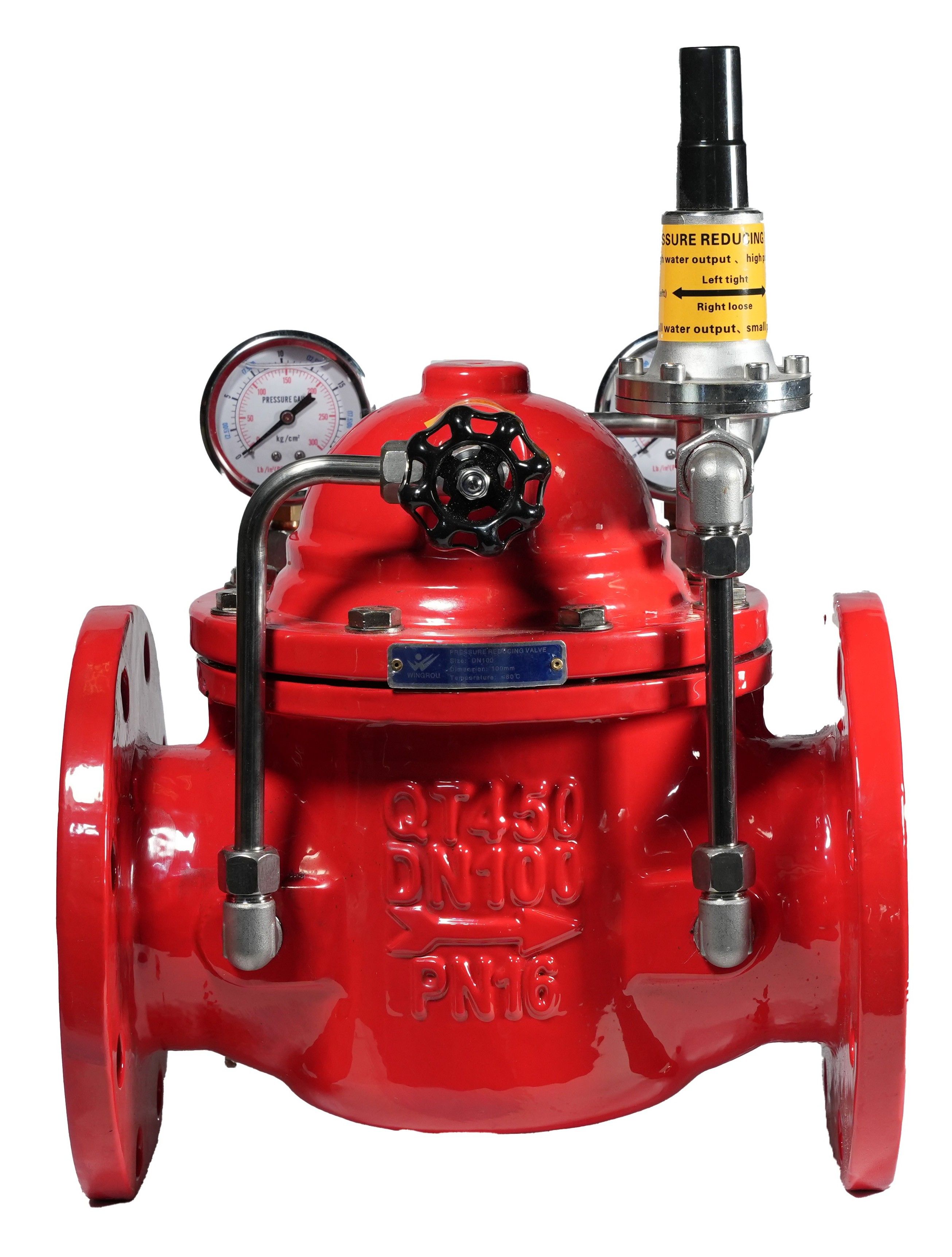

Pressure reducing and relief valves are essential for managing pressure within grooved pipe systems. These valves help to prevent over-pressurization, reducing the risk of system failure and ensuring safe operation.

In conclusion, advanced valve technology is vital for the optimal performance of grooved pipe systems. By selecting the appropriate valves for specific applications, operators can enhance system reliability, improve safety, and reduce maintenance costs.

Applications of Grooved Pipes Across Industries

The versatility of grooved pipes makes them suitable for various applications, from fire protection to HVAC systems. Grooved piping systems are designed to meet the specific needs of different industries, providing reliable and efficient solutions.

Fire Protection and Sprinkler Systems

Grooved pipes are widely used in fire protection systems due to their ability to withstand high pressures and their resistance to corrosion. They are ideal for sprinkler systems in commercial and residential buildings.

HVAC and Mechanical Piping

In HVAC systems, grooved pipes offer flexibility and vibration resistance, making them suitable for installations where movement and flexibility are required. They simplify the process of installation and maintenance.

Industrial Process Piping

Grooved pipes are used in various industrial processes, including chemical processing and oil refining. Their durability and resistance to corrosion make them a preferred choice for harsh environments.

Commercial and High-Rise Building Infrastructure

In commercial and high-rise buildings, grooved pipes are used for their ease of installation and flexibility. They are particularly useful in complex piping systems where adjustments and modifications are frequently needed.

Industry	Application	Benefits
Fire Protection	Sprinkler Systems	High Pressure Resistance, Corrosion Resistance
HVAC	Mechanical Piping	Flexibility, Vibration Resistance
Industrial Process	Chemical Processing, Oil Refining	Durability, Corrosion Resistance
Commercial Buildings	Complex Piping Systems	Ease of Installation, Flexibility

Essential Machinery for Grooved Pipe Installation

The installation of grooved pipes requires specialized machinery to ensure efficient and precise grooving. Grooved piping systems have become a staple in modern construction due to their reliability and ease of installation.

Grooving Machine Options

Grooving machines are the backbone of grooved pipe installation. They are used to create the grooves in pipe ends, which are essential for the grooved coupling system.

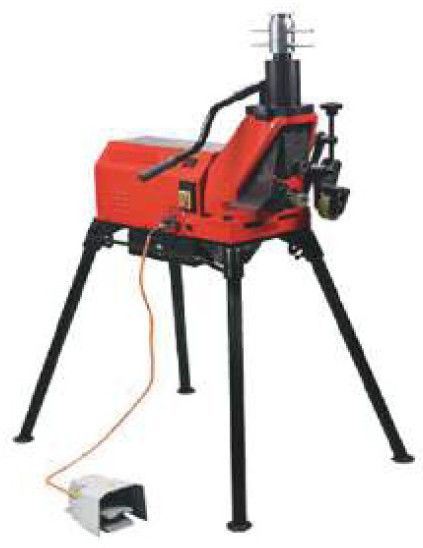

Grooving Machine 2-12

The Grooving Machine 2-12 is designed for smaller pipe sizes, typically ranging from 2 to 12 inches. This machine is ideal for projects that require precision grooving in tighter spaces.

Grooving Machine 8-24

For larger pipe sizes, the Grooving Machine 8-24 is the preferred choice, accommodating pipes from 8 to 24 inches in diameter.

"The key to a successful grooved piping system lies in the precision of the grooving process."

- John Smith, Piping Expert

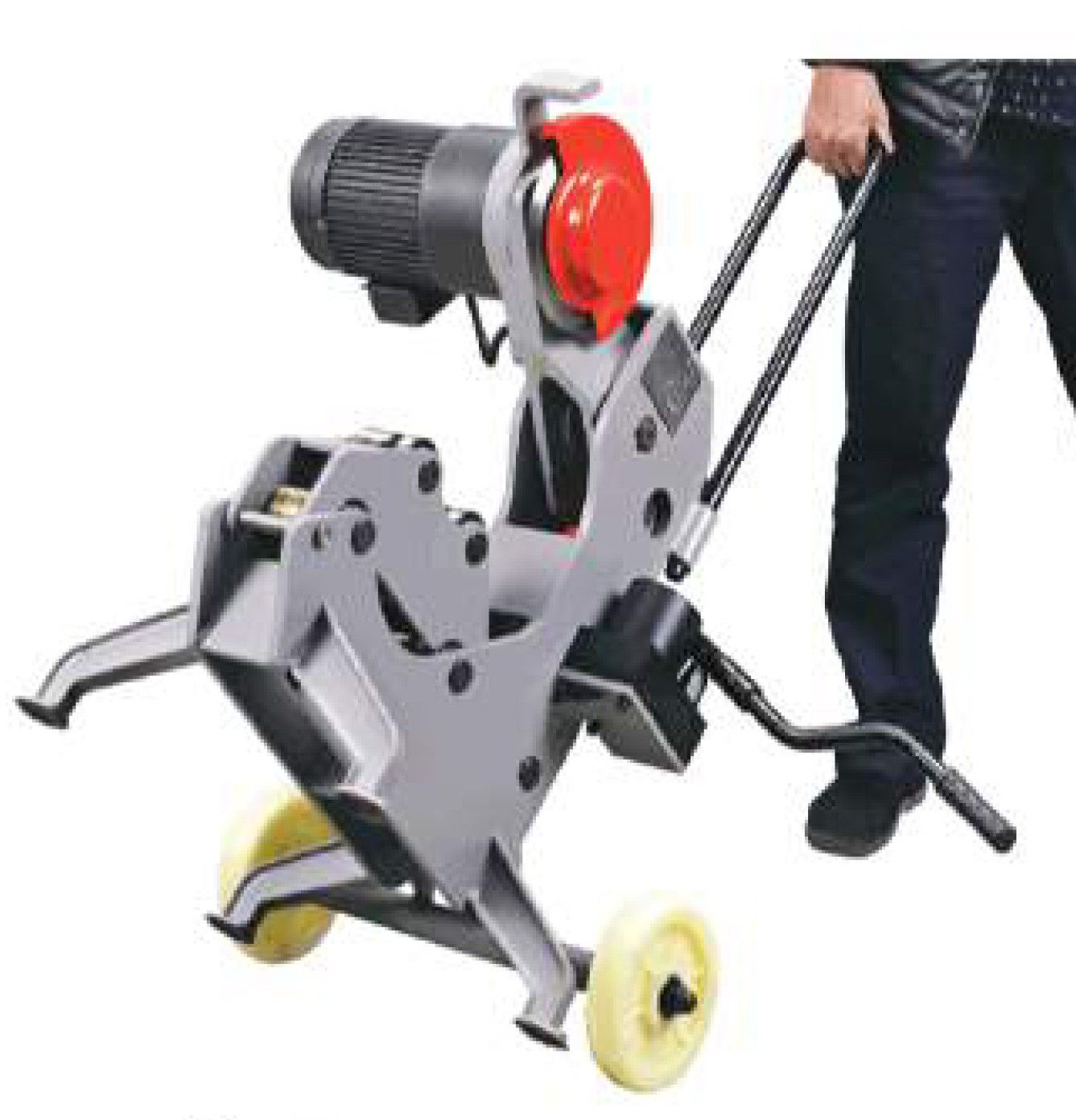

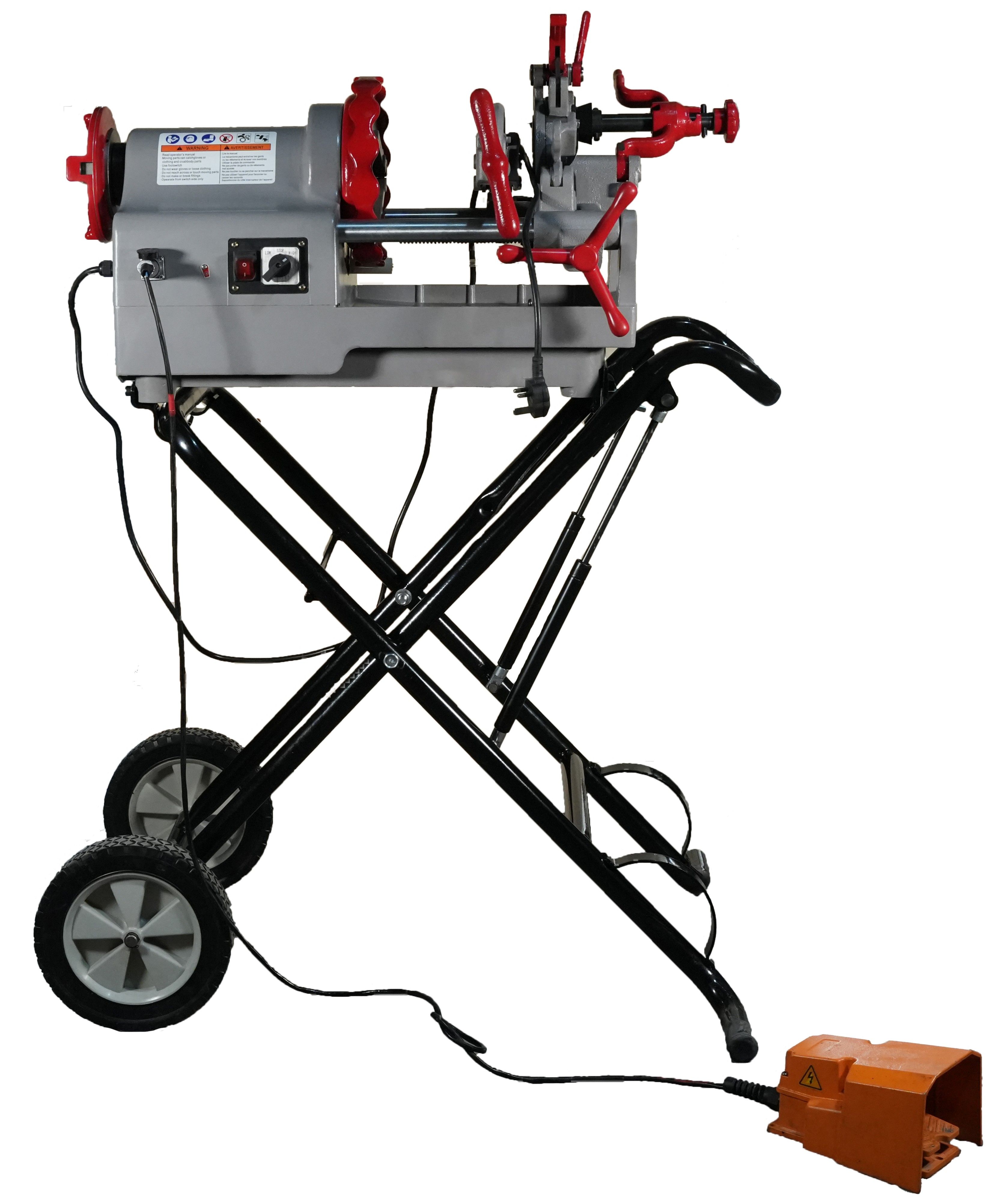

Threading and Pipe Cutting Machines

Threading and pipe cutting machines are also vital for grooved pipe installation. Threading machines create threads on pipe ends, while pipe cutting machines cut pipes to the required length.

Hole Cutting Technology

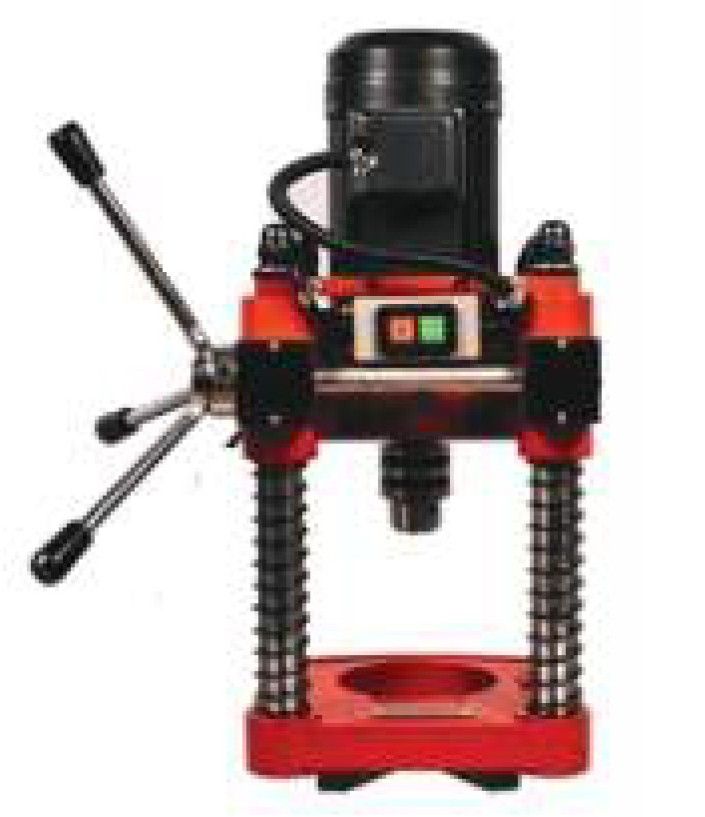

Hole cutting technology is crucial for applications where pipes pass through walls or structures. Advanced hole cutting machines ensure accurate cuts, minimizing damage to surrounding materials.

By utilizing the right machinery, contractors can ensure efficient and high-quality grooved pipe installations.

Flow Switch Technology for System Monitoring

Effective system monitoring is achieved through the use of sophisticated flow switch technology. Flow switches are critical in detecting the flow rate of fluids in piping systems, triggering alarms or control actions when the flow rate is outside predetermined limits.

WINGROU Flow Switch Systems

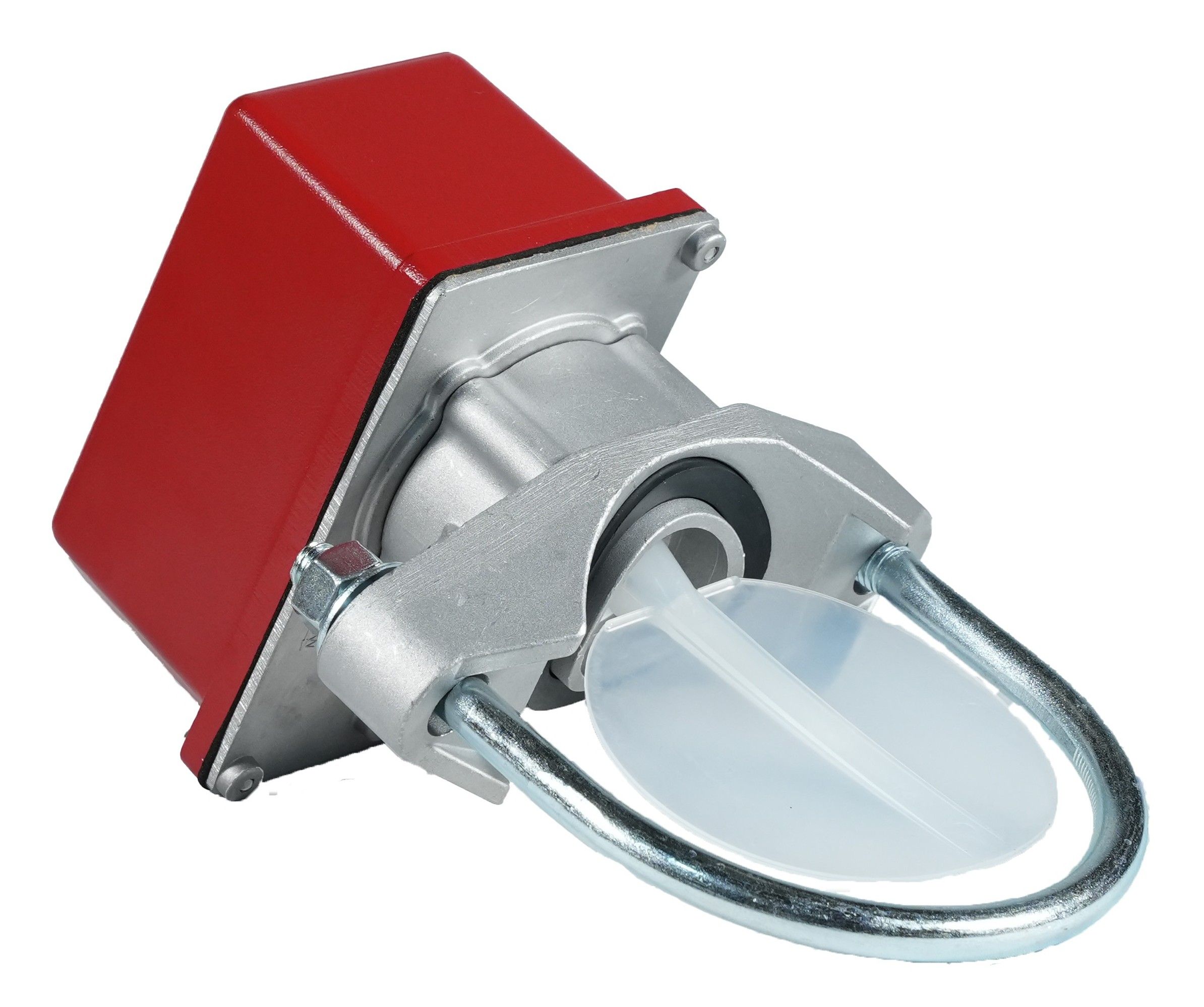

WINGROU flow switch systems are designed to provide reliable flow monitoring in various applications, including fire protection networks. These systems are engineered to be highly responsive and accurate, ensuring that any changes in flow rates are quickly detected.

The WINGROU flow switch is particularly notable for its robust design and versatility. It can be easily integrated into existing piping systems, providing a seamless upgrade to flow monitoring capabilities.

Integration with Fire Protection Networks

One of the key applications of flow switch technology is in fire protection networks. Here, flow switches play a vital role in monitoring the flow of water or other fire-suppressing agents, ensuring that the system is functioning correctly in the event of a fire.

By integrating flow switches into fire protection networks, facility managers can receive immediate alerts in case of any issues, allowing for swift action to be taken.

Performance Monitoring Applications

Beyond fire protection, flow switch technology is also used in various performance monitoring applications. This includes monitoring the flow of fluids in HVAC systems, industrial processes, and other commercial applications.

Application	Flow Switch Benefit
Fire Protection Networks	Ensures system functionality during fires
HVAC Systems	Optimizes heating and cooling efficiency
Industrial Processes	Monitors fluid flow for process control

By utilizing flow switch technology, operators can enhance system reliability, reduce downtime, and improve overall performance.

Quality Standards and Compliance for Grooved Pipes

Ensuring the quality of grooved pipes is vital for meeting international certification requirements and material specifications. Grooved pipes are used in a variety of applications, including fire protection systems, HVAC, and industrial processes, making their compliance with quality standards critical.

International Certification Requirements

Grooved pipes must comply with various international certification standards, such as those set by the American Society for Testing and Materials (ASTM) and the International Organization for Standardization (ISO). These certifications ensure that the pipes meet specific performance criteria, including pressure ratings and material specifications.

Pressure Ratings and Material Specifications

The pressure rating of grooved pipes is a critical factor in their design and application. Pipes are manufactured to withstand specific pressure ranges, and their material specifications, such as ductile iron or stainless steel, are chosen based on the application's requirements. Common material specifications include:

• Ductile iron for high-strength applications
• Stainless steel for corrosion-resistant needs
• Carbon steel for general industrial use

UAE and Middle East Compliance Standards

In the UAE and the broader Middle East region, grooved pipes must comply with local regulations and standards, such as those set by the Dubai Municipality and the UAE's Ministry of Energy & Infrastructure. Compliance with these standards is essential for ensuring the safety and reliability of piping systems.

Quality Assurance in Manufacturing

Quality assurance is a critical aspect of grooved pipe manufacturing. Manufacturers must implement rigorous testing and inspection protocols to ensure that their products meet international certification requirements and material specifications. This includes regular audits and compliance with ISO 9001 standards for quality management.

Embracing Grooved Pipe Technology for Future Projects

Grooved pipe technology has revolutionized modern piping systems, offering a smart alternative to traditional connection methods. The benefits of grooved pipe fittings, including installation speed, cost efficiency, and flexibility, have made them an attractive choice for various industries.

As the construction industry continues to evolve, the demand for modern piping solutions is expected to grow. Grooved pipe technology is poised to play a significant role in shaping the future of piping systems, particularly in the United Arab Emirates and the Middle East.

By embracing grooved pipe technology, industries can ensure efficient, safe, and reliable piping systems for future projects. The use of grooved pipe fittings and couplings can simplify installation, reduce maintenance costs, and enhance overall system performance.

FAQ

What are grooved pipes and how do they work?

Grooved pipes are a type of piping system that uses a mechanical joining method, where the pipe ends are grooved and connected using a coupling and gasket, providing a secure and leak-proof connection.

What are the benefits of using grooved piping systems?

Grooved piping systems offer several benefits, including fast installation, cost efficiency, safety advantages, flexibility, and maintenance benefits, making them a popular choice for various industries.

What is the difference between cut and roll grooved methods?

Cut grooving involves cutting a groove into the pipe end using a grooving tool, while roll grooving uses a roll grooving machine to form the groove by rolling the pipe material, with both methods having their own advantages and applications.

What types of grooved coupling solutions are available?

There are various types of grooved coupling solutions, including rigid, flexible, and reducing couplings, which cater to different applications and provide flexibility in piping system design.

What are the applications of grooved pipes across different industries?

Grooved pipes are used in various industries, including fire protection, HVAC, industrial process piping, and commercial building infrastructure, due to their reliability, flexibility, and ease of installation.

What are the quality standards and compliance requirements for grooved pipes?

Grooved pipes must comply with international certification requirements, pressure ratings, and material specifications, ensuring their quality and reliability for various applications.

How do grooved pipes contribute to fire protection systems?

Grooved pipes play a crucial role in fire protection systems, providing a reliable and leak-proof piping solution for sprinkler systems, fire hydrant networks, and other fire safety infrastructure.

What is the significance of flow switch technology in grooved pipe systems?

Flow switch technology, such as WINGROU flow switch systems, is used to monitor the flow of fluids in grooved pipe systems, ensuring the proper functioning of the system and detecting any potential issues.

What are the advantages of using grooved pipes in HVAC systems?

Grooved pipes offer several advantages in HVAC systems, including ease of installation, flexibility, and vibration resistance, making them a suitable choice for heating, ventilation, and air conditioning applications.

How do grooved pipes support industrial process piping applications?

Grooved pipes provide a reliable and flexible piping solution for industrial process piping applications, catering to various industries, including oil and gas, chemical processing, and power generation.
